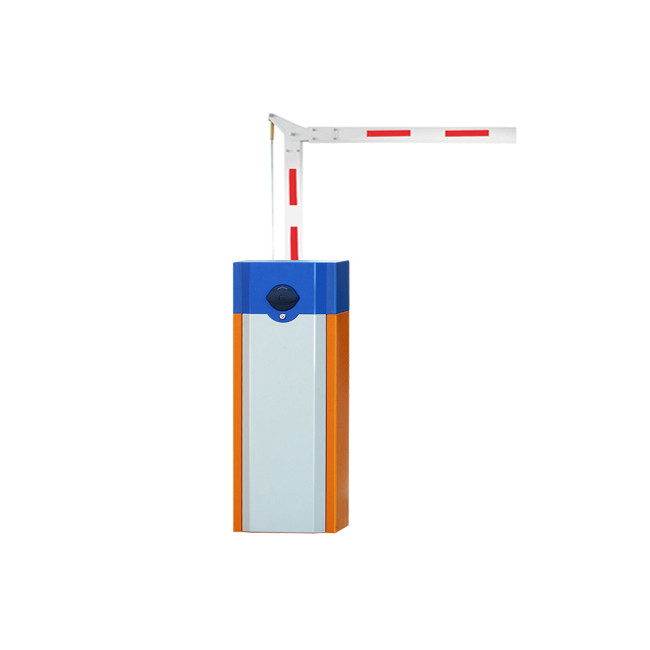

Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers
  • Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers
  • Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers
  • Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers

Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BG-101
Product Details
Thickness Of Case:
1.5mm
Surface Treatment:
Powder Baking
Color:
Orange, Yellow, Red, Blue, Grey, Black, White Etc
Warranty:
1 Year
Standard:
CE Certificated
Motor:
220V
High Light:

traffic barrier gate

,

remote control car parking barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description

Parking management system 1s powder coating auto traffic barrier gate with 90 degree articulate boom



Introduction of auto traffic barrier:

1. Manual release device to operate the barrier when power failure

2. Automatic reversing when the barrier boom meets the obstruction

3. RS485 Communication Module is compatible



Applications auto traffic barrier:



Suitable for outdoor as well as indoor parking area at sports center, business center, hospital, super market, airport, shopping mall, warehouse, hotel, factories, condominium, car rental company, etc. Can also be customized to be used together with any auto-pay or ticketing parking system.



Features of auto traffic barrier:



1. Manual release



2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking



3. Die-casting aluminum alloy motor, precision and good at thermal radiating



4. Motor cooling fan, solving the problem of heat-protection



5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)



6. Reversing on obstacle



7. Auto-closing



8. Support the INFRARER PHTOCELL for anti-bumping function (optional)



9. Support the external and internal VEHICLE LOOP DETECTOR (optional)



10. Traffic light interface



11. Wire control (switch signal)/ Remote control (418MHZ)



12. RS485 communication module (optional)



Specifications of Automatic Barrier Gate:



Running time

1 sec

3 sec

6 sec

3 sec

6 sec

3 sec

6 sec

3 sec

6 sec

Boom type

Straight

90°folding

180°folding

2 fence

3 fence

Max boom length

3m

4.5m

6m

3m

5m

3m

5m

4.5m

4m

Boom dimension (W×H)

45x80mm

45x100mm

Boom weight

3kg

4.5kg

5kg

6.5kg

8kg

9kg

11kg

7kg

7.5kg

Voltage

220V±10%, 110V±10%

Frequency

50/60HZ

Motor voltage

220V

Power

120W

Working temperature

-40°C~+75°C

Protection grade

IP44



Cases of auto traffic barrier:



Customized Outdoor Vehicle Barrier Gates Automatic Traffic Barriers 0





Why choose us:



1. Our Factory has 20 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
