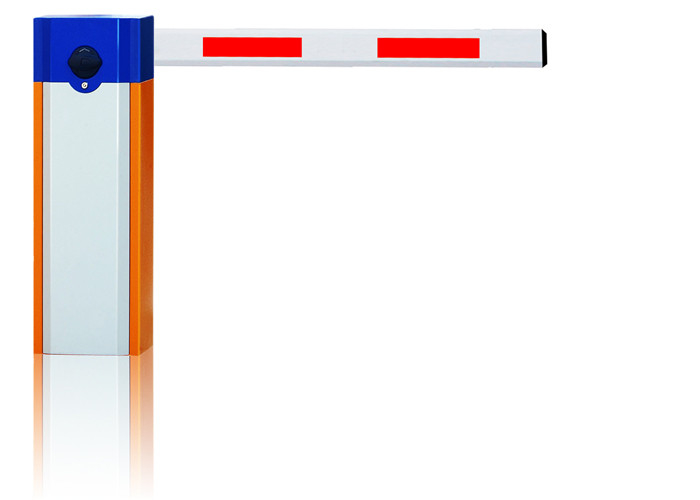

Orange / Yellow Automatic Barrier Gate Support Vehicle Loop Detector

Orange / Yellow Automatic Barrier Gate Support Vehicle Loop Detector

    • Orange / Yellow Automatic Barrier Gate Support Vehicle Loop Detector
    • Orange / Yellow Automatic Barrier Gate Support Vehicle Loop Detector
  • Orange / Yellow Automatic Barrier Gate Support Vehicle Loop Detector

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BG101

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Standard: CE Surface Finish: Powder Coating
    Arm Length: Max 6 Meters Arm Type: Straight, Folding And Fencing Are Available
    Color: Orange, Yellow, Red, Blue, Grey, Black, White Etc Warranty: 1 Year

    Access control system fast speed remote control automatic traffic barrier with straight boom



    Introduction of automatic traffic barrier:



    • Motor cooling fan to avoid the over-heating possibility
    • Automatic reversing when the barrier boom meets the obstruction



    Applications automatic traffic barrier:



    Barrier gates are typically found at Level crossings, drawbridges, parking facilities, checkpoints and entrances to restricted areas. They are also the usual method for controlling passage through toll booths, and can also be found on some freeway entrance ramps which are automatically controlled to drop to restrict traffic in the event of accident cleanup or road closures without the need to dispatch road workers or law enforcement to use a vehicle to block the way.



    Features of automatic traffic barrier:



    1. Manual release



    2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking



    3. Die-casting aluminum alloy motor, precision and good at thermal radiating



    4. Motor cooling fan, solving the problem of heat-protection



    5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)



    6. Reversing on obstacle



    7. Auto-closing



    8. Support the INFRARER PHTOCELL for anti-bumping function (optional)



    9. Support the external and internal VEHICLE LOOP DETECTOR (optional)



    10. Traffic light interface



    11. Wire control (switch signal)/ Remote control (418MHZ)



    12. RS485 communication module (optional)



    Specifications of automatic traffic barrier:



    Running time

    1 sec

    3 sec

    6 sec

    3 sec

    6 sec

    3 sec

    6 sec

    3 sec

    6 sec

    Boom type

    Straight

    90°folding

    180°folding

    2 fence

    3 fence

    Max boom length

    3m

    4.5m

    6m

    3m

    5m

    3m

    5m

    4.5m

    4m

    Boom dimension (W×H)

    45x80mm

    45x100mm

    Boom weight

    3kg

    4.5kg

    5kg

    6.5kg

    8kg

    9kg

    11kg

    7kg

    7.5kg

    Voltage

    220V±10%, 110V±10%

    Frequency

    50/60HZ

    Motor voltage

    220V

    Power

    120W

    Working temperature

    -40°C~+75°C

    Protection grade

    IP44
