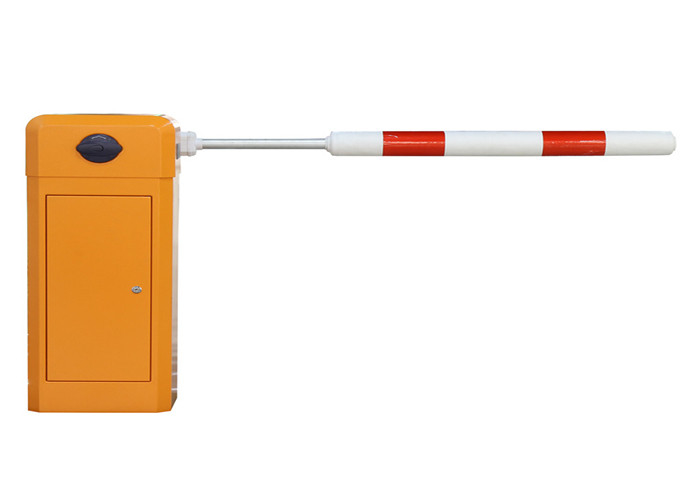

Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System

Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System

    • Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System
    • Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System
  • Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BG102

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, D/A, L/C, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Type: Automatic Barrier Gate Thickness Of Housing: 1.5mm
    Surface Finish: Powder Coating Arm Length: Max 8 Meters
    Arm Type: Straight, Folding And Fencing Are Available Color: Orange, Yellow, Red, Blue, Grey, Black, White Etc

    Traffic control system fast speed remote control automatic barrier gate with round straight boom



    Keywords:



    Traffic Barrier Gate,Boom Barrier Gate,Road Barrier Gate,Parking Barrier Gate,Car Barrier Gate,Boom Gate,Boom Barrier Gate,Security Barrier Gate,Safty Barrier Gate,Gate Bridge Barrier,Barrier Arm, Boom Arm,Vehicle Barrier Gate,Vehicle Parking Barrier gate,Vehiclie Boom Gate,Industrial Barrier Gate,Remote Control Barrier Gate,Electric Barrier Gate,Folding Barrier Gate,90 Degree Folding Barrier Gate,180 Dgree Folding Barrier Gate,Fence Barrier Gate,2 Fence Barrier Gate,3 Fence Barrier Gate,Gate Barrier,Arm Gate,Arm Barrier, Barrier Gate,Intelligent Barrier Gate,Automatic Barrier Gate,



    Introduction of Automatic Barrier Gate:



    • Heavy duty. AC motor is stronger and maintenance free (no need to change carbon). Compressed counter balance spring avoid possibility of spring over-stressed and break due to high volume continuous open/close cycle.
    • Safe. Arm will auto-reverse when hitting an obstacle during closing. Additional photo beam and traffic light (red & green) can be added to further enhance safety. Built-in MCB to protect against any electric hazard.



    Applications Automatic Barrier Gate:



    Suitable for outdoor as well as indoor parking area at airport, shopping mall, warehouse, hotel, factories, condominium, car rental company, etc. Can also be customized to be used together with any auto-pay or ticketing parking system.



    Features of Automatic Barrier Gate:



    1. Manual release



    2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking



    3. Die-casting aluminum alloy motor, precision and good at thermal radiating



    4. Motor cooling fan, solving the problem of heat-protection



    5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)



    6. Reversing on obstacle



    7. Auto-closing



    8. Support the INFRARER PHTOCELL for anti-bumping function (optional)



    9. Support the external and internal VEHICLE LOOP DETECTOR (optional)



    10. Traffic light interface



    11. Wire control (switch signal)/ Remote control (418MHZ)



    12. RS485 communication module (optional)



    Specifications of Automatic Barrier Gate:



    Running time

    1 sec

    3 sec

    6 sec

    3 sec

    6 sec

    3 sec

    6 sec

    3 sec

    6 sec

    Boom type

    Straight

    90°folding

    180°folding

    2 fence

    3 fence

    Max boom length

    3m

    4.5m

    6m

    3m

    5m

    3m

    5m

    4.5m

    4m

    Boom dimension (W×H)

    45x80mm

    45x100mm

    Boom weight

    3kg

    4.5kg

    5kg

    6.5kg

    8kg

    9kg

    11kg

    7kg

    7.5kg

    Voltage

    220V±10%, 110V±10%

    Frequency

    50/60HZ

    Motor voltage

    220V

    Power

    120W

    Working temperature

    -40°C~+75°C

    Protection grade

    IP44



    Cases of Automatic Barrier Gate:



    Automatic Vehicle Boom Remote Control Car Parking Barrier Traffic Control System





    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
