Fingerprint SS Access Control Turnstiles , Mechanical Anti Pinch Automatic Turnstile Gate

China Fingerprint SS Access Control Turnstiles , Mechanical Anti Pinch Automatic Turnstile Gate supplier

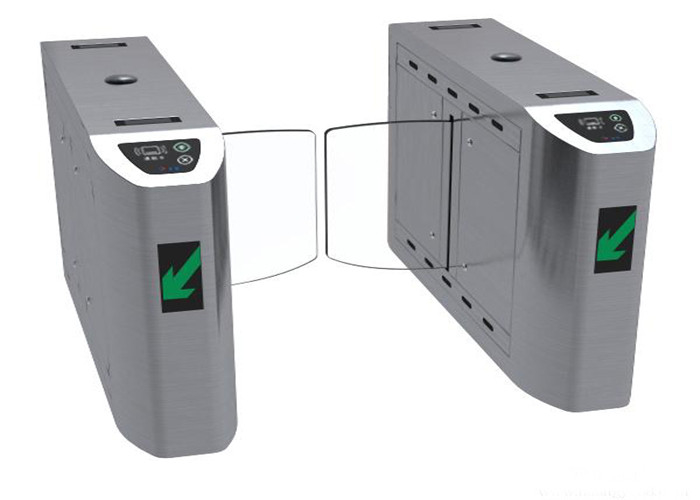

Large Image :  Fingerprint SS Access Control Turnstiles , Mechanical Anti Pinch Automatic Turnstile Gate

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SLB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union, D/P, D/A, L/C, MoneyGram
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Lane Length: 550mm Material Of Housing: 304 Or 316 Stainless Steel
Max Flow Rate: 25 To 30 Person Per Minute Motor Voltage: DC 24V (brush Motor)
Surface Treatment: Wire Drawing Or Mirron Finished Direction: Can Be Set As Single Or Double

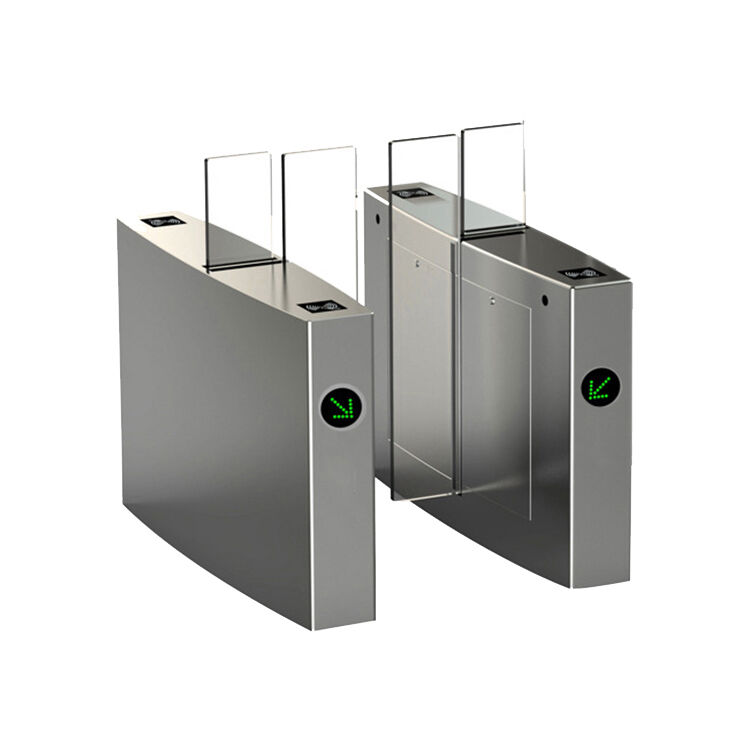

 Fingerprint recognition  security 304 stainless steel  half height sliding gate access control turnstiles



Introduction of half height sliding gate:



1. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.

2. Direction display to guide passenger which direction is to go.

3. Stable running with little noise.



Applications of half height sliding gate:



Full height sliding gate is suitable for indoor or outdoor with tent. They are optimized solution for airport, railway station, metro station, bus station, stadium, supermarket, check point, book stores, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



Features of half height sliding gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of half height sliding gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of full height sliding gate:



Fingerprint SS Access Control Turnstiles , Mechanical Anti Pinch Automatic Turnstile Gate
