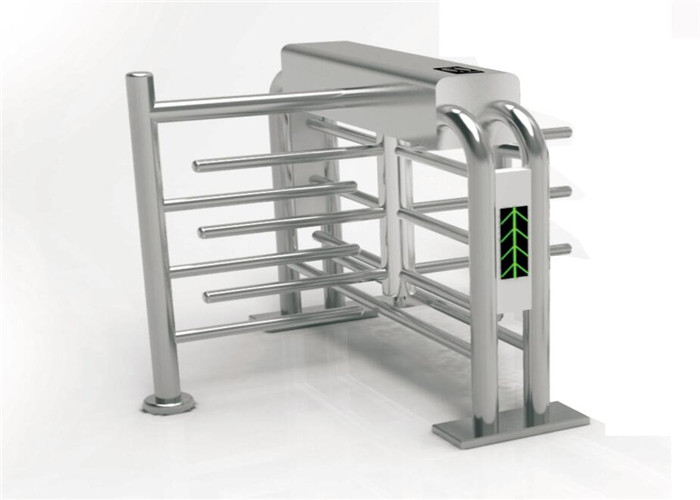

Entrance Security Half Height Turnstile Door With Fingerprint Reader

China Entrance Security Half Height Turnstile Door With Fingerprint Reader supplier

Large Image :  Entrance Security Half Height Turnstile Door With Fingerprint Reader

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-HHT02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Life: 5 Million Times Arm Length: 40cm To 50cm
Warranty: 1 Year Standard: CE Certificated
OEM/ODM: Supported Motor: No Motor

Fingerprint reader  stainless steel security automatic rotary waist height barrier supported OEM/ODM



Introduction of waist height barrier:



1. Direction can be set as single-direction or bi-direction.

2. Led direction light to indicate the direction

3. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access

controller needed).



Applications of waist height barrier:



Sinomatic waist height turnstile can be widely used in places like stadium, hotel, hospital, school, airport, wharf, metro station, railway station, park, supermarket, swimming pool, library, museum, book store, commercial and business center etc.



Features of waist height barrier:

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of waist height barrier:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

40cm

Working temperature

-20°C~60°C



Cases of waist height barrier:



Entrance Security Half Height Turnstile Door With Fingerprint Reader



Why choose us:



1. 13 years of OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
