Pedestrian Security Automatic Half Height Turnstile For Gymnasium
  • Pedestrian Security Automatic Half Height Turnstile For Gymnasium

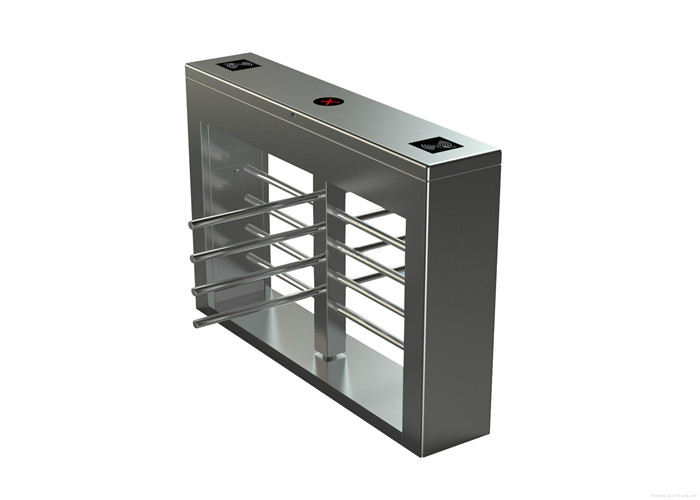

Pedestrian Security Automatic Half Height Turnstile For Gymnasium

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HHT01
Product Details
Standard:
European Standard
Max Flow Rate:
25 To 30 Person/ Minute
Direction:
Single Or Double Direction
Material Of Housing:
304 Or 316 Stainless Steel
Application:
Indoor/outdoor With Tent
Thickness Of Housing:
1.2mm Or 1.5mm
High Light:

turnstile entrance gates

,

automatic systems turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Crowd Control System 316 stainless steel automatic half height turnstile with LED light



Introduction of Half Height Turnstile:



Sinomatic half height turnstile is a controlling device which is designed to manage the access control and passenger flow.



Applications of Half Height Turnstile:



It is widely used in gymnasium,tourist attraction,business building and so on,and is normally installed in the supervision area.It can satisfy different controlling requirements,and can also connect with control devices such as card readers,ticket dispensers,etc.



Features of Half Height Turnstile:

  • Cabinet is made of 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of half height turnstile



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

400mm to 500mm

Working temperature

-20°C~60°C



Cases of Half Height Turnstile:



Pedestrian Security Automatic Half Height Turnstile For Gymnasium 0





Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
