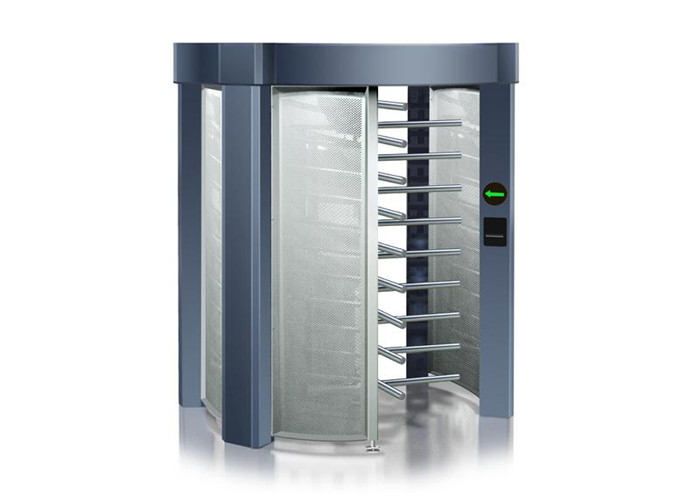

Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate

Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate

    • Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate
    • Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate
  • Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FHT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00pcs per month
    Contact Now
    Detailed Product Description
    Product Life: 5 Million Times Rotating Degree: 90 Degree Or 120 Degree
    OEM/ODM: Supported Direction: Single Or Bi-direction
    Control Circuit: DC24 Working Temperature: -20°C~60°C

    304SS electric two way cage type powder coating full height single barriers with card reader plate





    Introduction of Full Height Turnstile:



    Sinomatic full height barriers have flexible structure, it can be used in simple entrance and exit processes and it can also be used in complicated entrance and exit processes with electronic card equipment. Every sinomatic turnstile can be used unidirectionally and bidirectionally.



    Applications of Full Height Turnstile:



    Sinomatic full height barriers are suitable for applications such as public buildings, offices, schools and universities where the requirements of appearance and security are equally important.



    Features of Full Height Turnstile:



    • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



    Specifications of Tripod Turnstile Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    500mm to 600mm

    Working temperature

    -20°C~60°C



    Cases of Full Height Turnstile:



    Revolving Turnstile Barrier Gate 304 Stainless Steel Turnstile With Card Reader Plate



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
