Outdoor Rainproof Full Height Barriers Automatic Turnstiles For Stadium / Buildings

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Outdoor Rainproof Full Height Barriers Automatic Turnstiles For Stadium / Buildings

China Outdoor Rainproof Full Height Barriers Automatic Turnstiles For Stadium / Buildings supplier

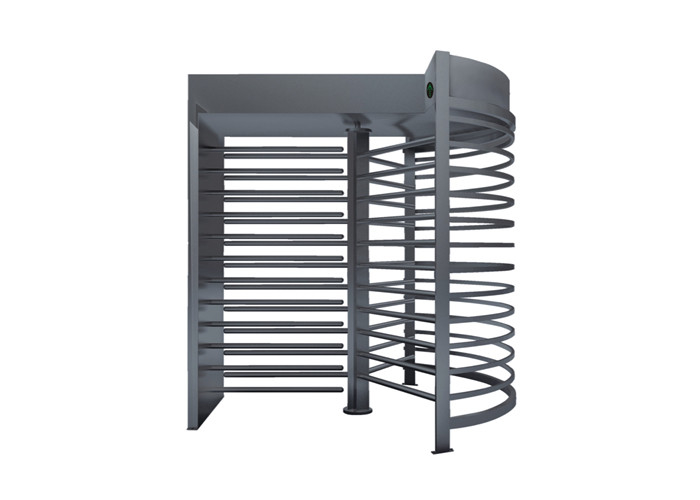

Large Image :  Outdoor Rainproof Full Height Barriers Automatic Turnstiles For Stadium / Buildings

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-FHT01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,00pcs per month
Contact Now
Detailed Product Description
Arm Diameter: 38mm Size Of Housing: Custom Made
Thickness Of Housing: 1.2 Or 1.5mm Direction: Single Or Bi-direction
Warranty: 1 Year Surface Finish: Wire Drawing

Stadium high traffic volumes public building strict security standard full height barriers made in China





Introduction of Full Height Turnstile:



Sinomatic full height barriers are manufactured to be used in places like stadiums and amusement centers to get under control passing of bevy of people. Sinomatic full height barriers are designed to welcome crowded groups. These turnstile models can have 3 or 4 arms.



Applications of Full Height Turnstile:



Full height rotor turnstiles are designed for complete and secure closure of a passageway and used for control of access at locations with high security requirements, both indoors and outdoors.





Features of Full Height Turnstile:



  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

500mm to 600mm

Working temperature

-20°C~60°C



Cases of Full Height Turnstile:



Outdoor Rainproof Full Height Barriers Automatic Turnstiles For Stadium / Buildings



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
