Entrance Control Security Full Height Turnstile Turn Style Door With Double Passage

  • Entrance Control Security Full Height Turnstile Turn Style Door With Double Passage
  • Entrance Control Security Full Height Turnstile Turn Style Door With Double Passage
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Channel 2 Channel Power Consumption 40W
OEM/ODM Supported Arm Length 500mm To 600mm
Direction Single Or Bi-direction Warranty 1 Year
High Light

revolving turnstile

,

full height barriers

,

2 channel full height turnstile gate
Leave a Message
Product Description

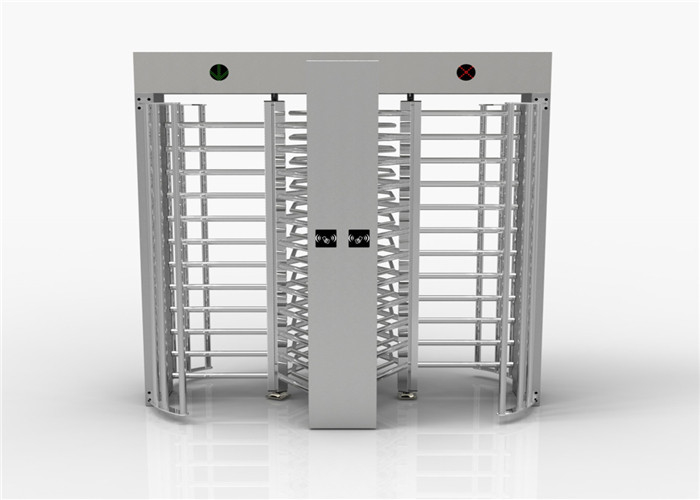

Double passage bi-directional entrance control security straight arm full height turnstile for hotel





Introduction of Full Height Turnstile:



This full height turnstile designed with unique mechanical transmission,microprocessors and variety of card-reading machines perfectly integrated together.Through equip various reading&writing machines to realize intelligent pedestrian control and management.



Applications of Full Height Turnstile:



The full height turnstile series are widely used in entrance/exit passsages of:

Airport, wharf, metro station, bus station, sports center, prison, fitness center, factory and so on.





Features of Full Height Turnstile:



  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

500mm to 600mm

Working temperature

-20°C~60°C



Cases of Full Height Turnstile:



Entrance Control Security Full Height Turnstile Turn Style Door With Double Passage 0



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
