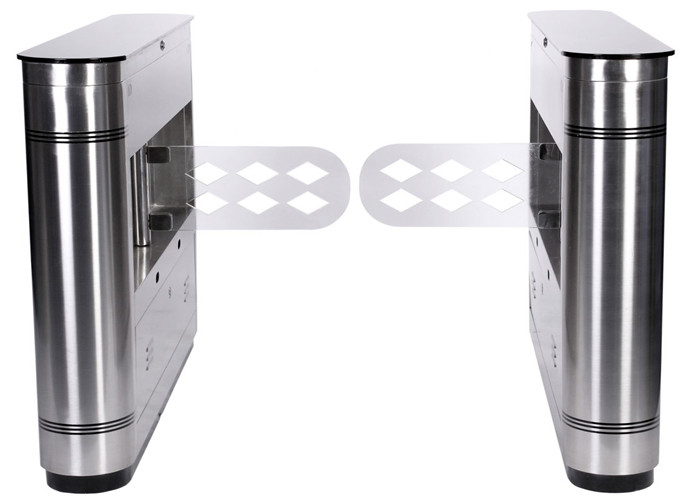

Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover

China Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover supplier
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover supplier Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover supplier

Large Image :  Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB04

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Size: 1200mm*230mm*1000mm Body Material: 304 Stainless Steel
Top Cover Material: Marble Arm Material: Acrylic
Product Life: 4 Million Times Motor: 24V DC

Luxious full automated slim size 2 year warranty swing turnstile barrier with marble top cover



Introduction of swing arm barrier:



1. intelligent route-way managing device
2. integrates mechanism,
3. electron, microprocessor



Features of swing arm barrier:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.



Specifications of swing arm barrier:



Description

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

20 to 25 person per minute

Gate swing angle

180 degree

Gate opening speed

1.5s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of swing arm barrier:



Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
