Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile

Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile

    • Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile
    • Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile
  • Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Size Of Housing: 1200*300*1000mm Material Of Housing: 304 Or 316 Stainless Steel
    Working Temperature: -20°C~60°C Arm Material: Stainless Steel Or Acrylic
    Infrared Photocell: Yes Application: Indoor Or Outdoor With Rainshed

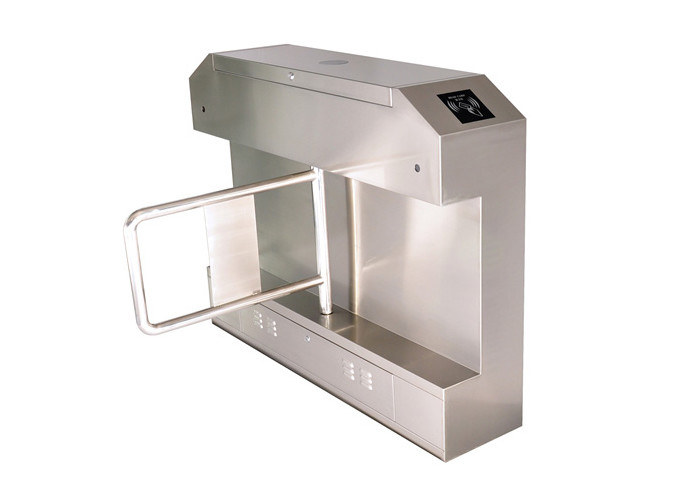

    1.2 meter long 304 stainless steel case biometric access control system swing barrier





    Application of Pedestrian Swing Gate:



    Automatic swing barrier gate is designed to control pedestrian entry or exit in the following areas:

    Commercial building, business center, supermarket, school, library, swimming pool etc.



    Features of Pedestrian Swing Gate:

    • Support bi-directional opening
    • Can integrate with access control system.
    • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
    • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
    • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
    • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
    • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
    • Gate length can be easily customized to fit site requirement.
    • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
    • Gate motor mechanism is self lock at open and close position.



    Specifications of Pedestrian Swing Gate:



    Description

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    20 to 25 person per minute

    Gate swing angle

    180 degree

    Gate opening speed

    1.5s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of Pedestrian Swing Gate:



    Biometric Access Control Security Swing Gate , 304 Stainless Steel Turnstile



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
