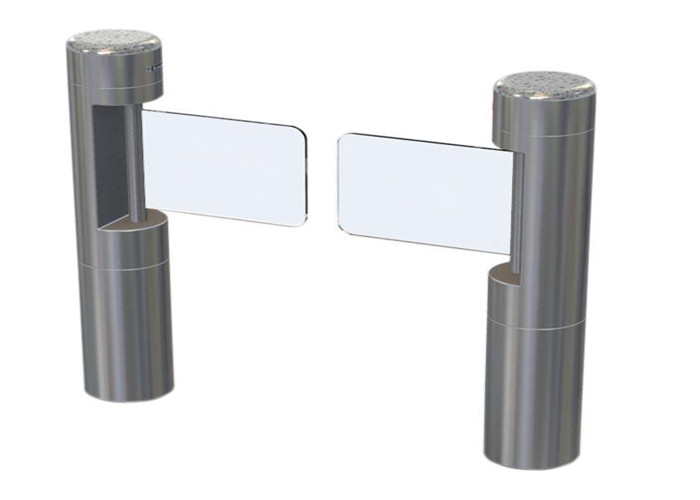

Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional

Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional

    • Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional
    • Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional
  • Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Body Shape: Cylinder Motor Voltage: DC 24V (brush Motor)
    Application: Indoor/outdoor With Tent Aterial Of Housing: 304 Or 316 Stainless Steel
    Direction: Single Or Bi-direction Max Flow Rate: 20 To 25 Person Per Minute

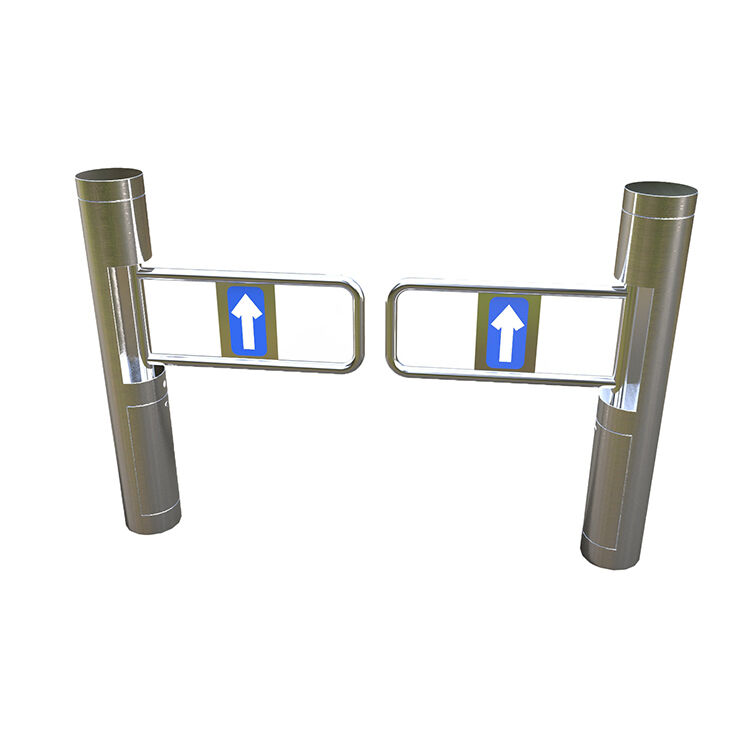

    Crowd control bi-directional supermarket cylinder 304 stainless full automatic pedestrian swing gate



    Keywords: wing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrace turnstile, entrance gate, turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate



    Applications of Pedestrian Swing Gate:



    Pedestrian swing gate SN-SB01 is cylinder shape swing gate for indoor or outdoor with tent. They are  economical solution for railway station, bus station, metro station, colleges, commercial building, library, stadium, hotel, bank and etc.



    Features of Pedestrian Swing Gate:

    • Support bi-directional opening
    • Can integrate with access control system.
    • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
    • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
    • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
    • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
    • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
    • Gate length can be easily customized to fit site requirement.
    • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
    • Gate motor mechanism is self lock at open and close position.



    Specifications of Pedestrian Swing Gate:



    Description

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    20 to 25 person per minute

    Gate swing angle

    180 degree

    Gate opening speed

    1.5s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of Pedestrian Swing Gate:



    Full Automatic Indoor / Outdoor Pedestrian Swing Gate Support Bi-Directional
