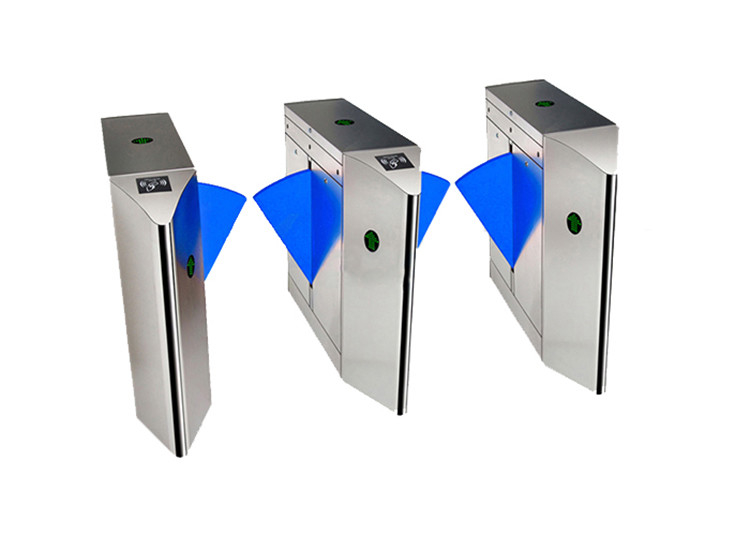

Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification

Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification

    • Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification
    • Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification
    • Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification
  • Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Max Flow Rate: 25 To 30 Person Per Minute Flap Opening / Closing Time: 1s
    Thickness Of Housing: 1.2mm Or 1.5mm Material Of Housing: 304 Or 316 Stainless Steel
    Working Temperature: -20°C~60°C Waranty: 1 Year
    Direction: Single Or Double
    High Light:

    automatic flap barrier

    ,

    waist high turnstile

    Bridge type China OEM entrance brush-less 24V DC motor flap turnstile gate with CE certification



    Advantage of Sinomatic Flap Turnstile Gate



    1. Flaps open when power off, and auto-close when power on.

    2. Compatible with diverse access control devices.

    3. Pedestrian flow directions can be single or double directions.

    4. Available for two-way traffic lights, which can prompt the state---pass or no-entry.



    Features of Flap Turnstile Gate:



    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gate equipment).

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as single-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Counter function (optional).

    14. Support infrared photocell for anti-pinch and reset function.



    Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification 0

    Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification 1



    Specifications of Flap Turnstile Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of Flap Turnstile Gate:



    Electric Security Flap Barrier Gate Turnstile Entrance Gates With CE Certification 2
