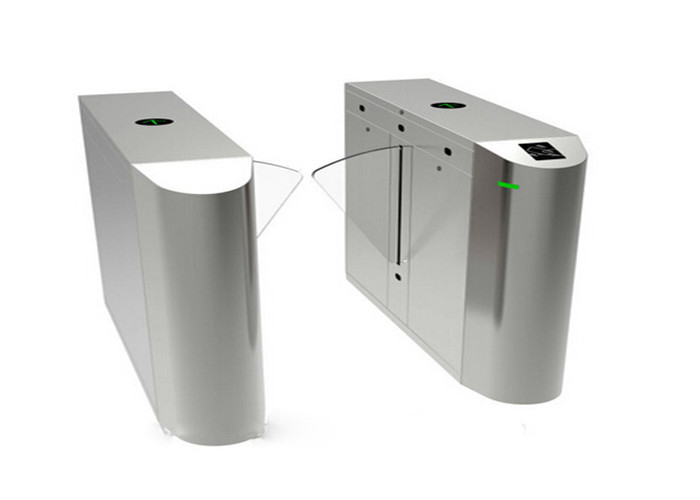

Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell

Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell

    • Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell
    • Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell
  • Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Max Flow Rate: 25 To 30 Person Per Minute Working Temperature: -20°C~60°C
    Size Of Housing: 1200*300*1000mm Material Of Case: 304 Or 316 Stainless Steel
    Access Device Input Voltage: Dry Contact Or 12V Electrical Level Signal Normal Life: 5 Million Cycles
    Reset Time When Power On: 3s Flap Material: Acrylic

    Metro station access control system fingerprint scanner stainless steel flap barrier gate with alarm photocell



    Introduction of Flap Barrier Gate:



    1.being able to program running status by the small keyboard in the main board

    2.Preventing pedestrians from being nipped and from hurt

    3. Flaps are automatically locked until opening signal is received



    Applications of Flap Barrier Gate:



    Sinomatic flap barrier gate are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



    Features of Flap Barrier Gate:



    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gate equipment).

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as single-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Counter function (optional).

    14. Support infrared photocell for anti-pinch and reset function.



    Specifications of Flap Barrier Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of Flap Barrier Gate:



    Metro / Stadium Fingerprint Scanner Stainless Steel Turnstile With Alarm Photocell



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
