Gym / Stadium Full Automatic Flap Barrier Turnstile Barrier Gate With LED Lamp

China Gym / Stadium Full Automatic Flap Barrier Turnstile Barrier Gate With LED Lamp supplier

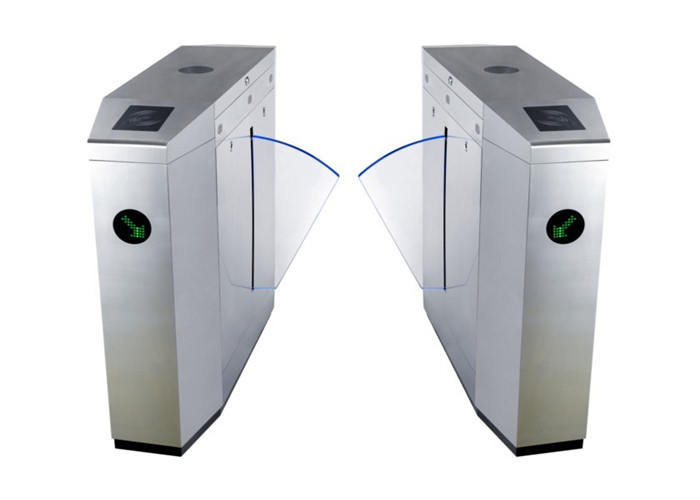

Large Image :  Gym / Stadium Full Automatic Flap Barrier Turnstile Barrier Gate With LED Lamp

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-FB01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Material Of Housing: 304 Or 316 Stainless Steel Flap Material: Acrylic
Max Flow Rate: 25 To 30 Person Per Minute Surface Treatment: Wire Drawing
Direction: Can Be Set As Single Or Double Application: Indoor/ Outdoor With Tent
Drive Motor: DC 24V

Full automatic  flow control 316 stainless steel flap barrier gate with LED lamp



Introduction of Flap Barrier Gate:



  • Durable DC brush motor, highly integrated mechanism, 100% heavy duty operation.
  • Sufficient infrared sensors for protection, anti-intrusion, and anti-tailgating.
  • Compatible with other access control system.
  • Convenient installation and maintenance.

Applications of Flap Barrier Gate:



Sinomatic full automatic flap barrier gate are widely used in the following sites:

1. Government buildings

2. Banking buildings

3. Educational buildings

4. Office buildings

5. Gym/Stadium

6. Factory buildings



Features of Flap Barrier Gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Barrier Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Flap Barrier Gate:



Gym / Stadium Full Automatic Flap Barrier Turnstile Barrier Gate With LED Lamp



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
