Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader

Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader

    • Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader
    • Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader
  • Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TT03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Power Supply: AC220±10%V 50Hz/AC110±10% 60Hz Motor: No Motor
    Control Circuit: DC24 Material Of Housing: 304 Or 316 Stainless Steel
    Application: Indoor/outdoor With Tent Thickness Of Housing: 1.2mm Or 1.5mm
    Bar Length: 510mm Bar Quantity: 3 Bar
    High Light:

    stainless steel turnstile

    ,

    turn style door

    Semi automatic electric arc waist height tripod turnstile gate with RFID card reader



    Introduction of Tripod Turnstile Gate:



    RFID card reader tripod turnstile gate model SN-TT03 can connect to any kinds of controller and various consumption devices. Different identification systems can be connected like ID card reader, IC card reader, fingerprint and Iris etc.



    Applications of Tripod Turnstile Gate:



    RFID card reader tripod turnstile gate model SN-TT03 is mostly for indoor usage (If used outdoor, better use SS316 and must with tent). Nowaday, more and more buildings use tripod turnstile for crowd control.



    Features of Tripod Turnstile Gate:

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



    Product details of Tripod Turnstile Gate:

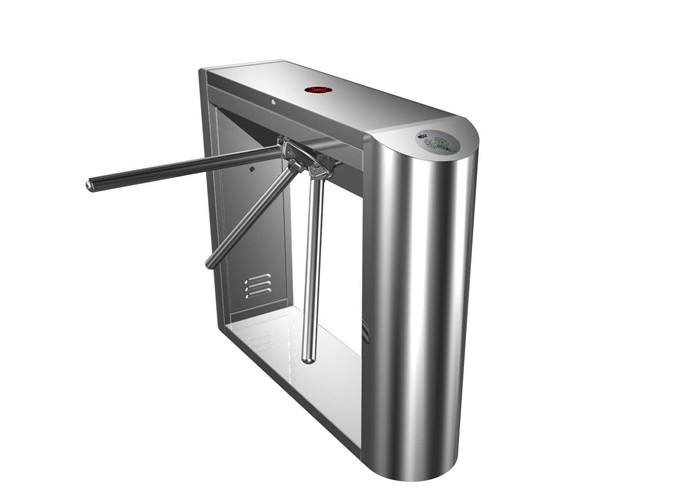

    Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader 0



    Specifications of Tripod Turnstile Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    510mm

    Working temperature

    -20°C~60°C



    Cases of Tripod Turnstile Gate:



    Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader 1



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
