OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery

China OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery supplier
OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery supplier OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery supplier OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery supplier

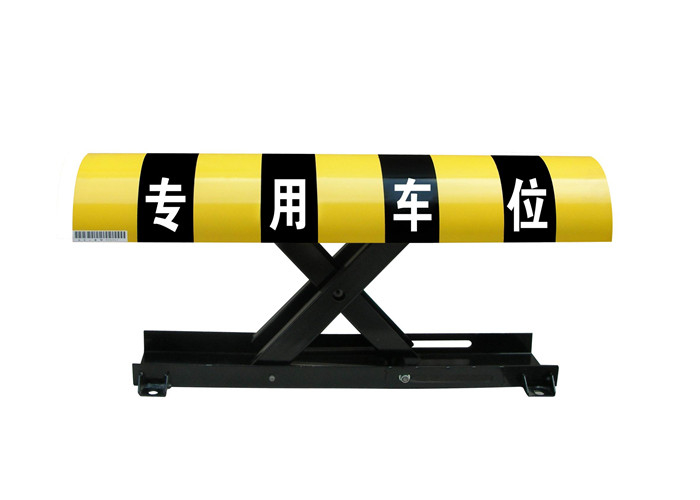

Large Image :  OEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-BW-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Carton box
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Type: Car Parking Lock Standard: CE
Battery: DC12V, 7Ah Surface Finish: Spraying Plastic Coating
Material: 2mm Steel Rolling Running Time: 5-6 Seconds
Remote Distance: ≤50m Warranty: 1 Year
OEM/ODM: Supported

Parking guidance system automatic remote control car parking lock with DC12V battery



Keywords:

parking lock, remote control parking lot lock, parking guard, parking barrier, parking position lock, parking space saver, parking bollard, parking equipment, parking device, parking guardian, parking system.



Introduction of car parking lock:



Car Parking Lock is designed to provide parking for the general public, as well as for drivers
with special privileges and needs. These include spaces reserved for monthly, annual renters,
owners, renters of condominium, co-op parking spaces, disabled drivers and company executives
and visitors. In dedicated parking garages, access to the entire garage or to a designated area
within it can be restricted using a single access controlled barrier. In a mixed-use application,
however, access needs to be controlled on an individual parking space basis.



Applications car parking lock:



Car parking lock has been installed in the following types of applications: Office buildings, residence condominiums, hospitals, airports, shopping centers, stores, school, university, supermarket individual user and etc.



Features of car parking lock:



Easy to Use

Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space;

When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from

using your parking space.



Easy to Install

Fix parking lock onto the ground by expansion bolts, that is all!



Rechargeable Battery with Long Continuous Use

Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses,

or about 6 months continuous use. Your parking lock comes with a recharging power pack.



Heavy Duty and Durable

The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the

housing is waterproof, rustproof and dust-proof enough to last about 5 years in hard weather. The sway arm

made of steel rolling won`t deform even it is crushed by a vehicle.



Burglar-proof for safety

The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the

housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its

owner and also scares the thief.



Auto-re-position

In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm

sound, and once the vehicle left the sway arm will automatically raise up till vertical. With the remoter, you can

even hold position of sway arm when it was hit by a vehicle.



180/90 Degree Anti-collision (Available for some models)

In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm

sound, this will protect both vehicle and the parking lock.



Anti-disconnecting for Power Safety

The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit



Alarm Against a Hit

In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.



Noise-free

The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and

less friction, also goods for quiet environment.



Manual control in case of no power

In case the power is off, just manually control the parking lock in emergency.



Alarm Against a Low Battery

If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.



Cases of car parking lock:



OEM / ODM Parking Space Lock Parking Guidance System With DC12V BatteryOEM / ODM Parking Space Lock Parking Guidance System With DC12V Battery



Specifications of car parking lock:

Item

Specification

Motor voltage

12Volt DC

Battery

12Volt 7.0Ah sealed lead-acid

Power Consumption(operation)

20W

Power Consumption(standby)

30mW

Remote control distance

> 30m

Running time

5s to 6s
