Home ProductsFlap Barrier Gate

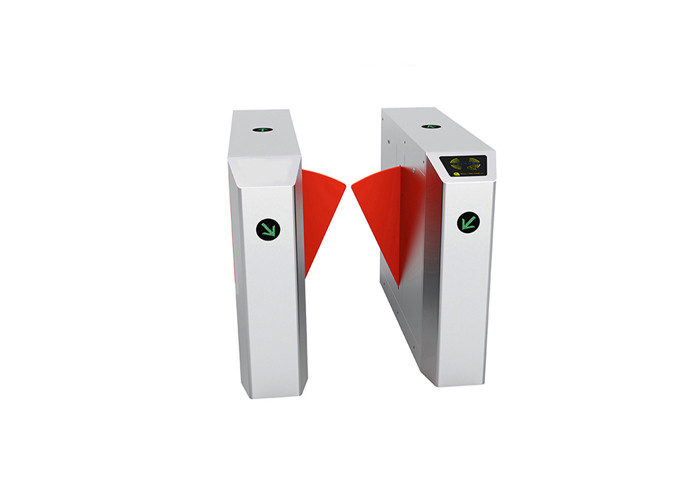

304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier

304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier

    • 304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier
    • 304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier
  • 304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Product Type: Flap Barrier Thickness Of Housing: 1.2mm Or 1.5mm
    OEM/ODM: Supported Application: Indoor/outdoor With Tent
    Arm Length: 270mm Warranty: 1 Year
    Standard: CE Material Of Housing: 304 Or 316 Stainless Steel
    Direction: Single Or Bi-direction Max Flow Rate: 25 To 30 Person Per Minute
    High Light:

    automatic flap barrier

    ,

    waist high turnstile

    Pedestrian Control Automatic Flap Barrier Gate With 304 Stainless Steel Cabinet



    Introduction of Flap Barrier Gate:



    Whereas the flap barrier is a high-end access control barrier that meets the strict requirements of large corporate buildings, it is simpler, offering a strict level of security with beautiful design. The flap barrier can be a support to the security guards and receptionists in keeping track of the visitors and staff entering a building, ensuring only authorised users can enter certain areas. This beautifully designed flap barrier offers simple but effective options and is thus extremely well suited to applications where a beautiful design and user friendliness take preference.



    Applications of Flap Barrier Gate:



    Flap barrier gate is suitable for indoor or outdoor with tent. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



    Features of Flap Barrier Gate:



    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gate equipment).

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as single-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Counter function (optional).

    14. Support infrared photocell for anti-pinch and reset function.

    304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier 0

    304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier 1

    Specifications of Flap Barrier Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of Flap Barrier Gate:



    304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier 2304 Stainless Steel Automatic Systems Turnstiles , Pedestrian Automatic Flap Barrier 3



    Why choose us:



    1. Our Factory has 18 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
