Double Leaf Swing Gates Motor 400kg Lockmaster Automatic Wifi Mobile App Control

Product description

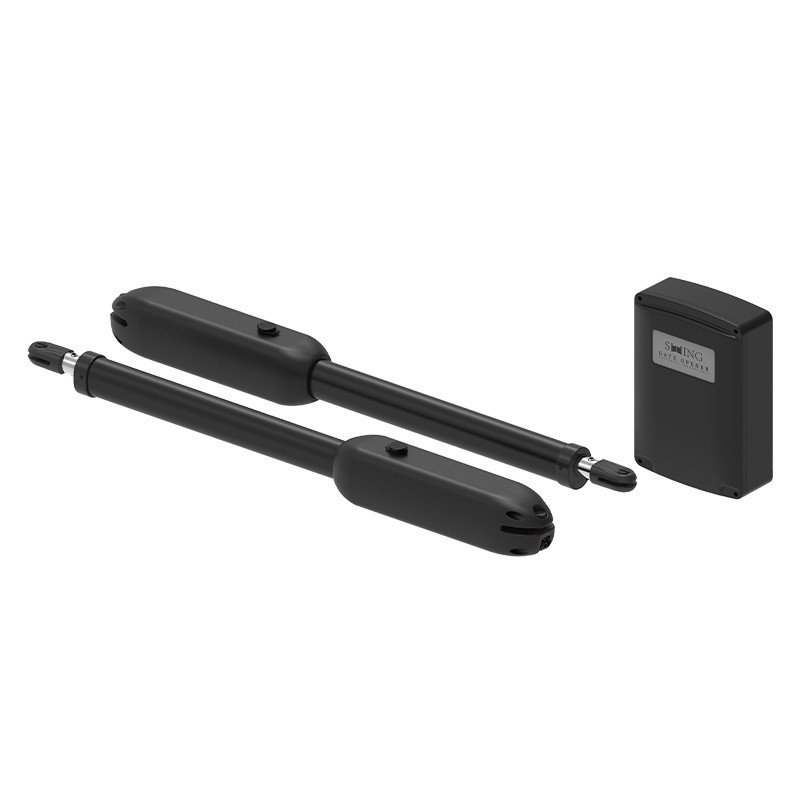

The SW400DC swing gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3m.

Product features

* DC motor, compact structure, smooth operation and low noise.

* Optional for Stroke length 29 cm and 49 cm.

* Separately control box

* Keypad / single button interface.

* Alarm lamp, Photo beam & safety beam interface.

* User can select auto-close function.

* Installing the mechanical stops inside the opener to eliminate ground stops, possibility to use adjustable fixing limit block.

* Manual key release design for emergency purposes.

* Automatic stop when hitting obstacle during opening, auto-reverse when hitting obstacle during closing.

* Soft start slow stop, automatic close, obstacle detection by automatic reversing.

* Interface for GSM, infrared sensor, alarm light, wall button.

* Back up battery is available.

* Support works with solar panel.

* Shell material is aluminum, arm is stainless steel.

* Separate control unit, easy to install.

TECHNICIAL SPECIFICATIONS

Standard packing list

SW400DC motor * 2pcs.
control box * 1pcs.
control board * 1pcs.
remote control * 2pcs.
manual release key * 1pcs.
user manual*1pcs.
mounting accessories.

Installation

SW400DC swing gate opener is applicable to single leaf gate weight less than 400kg, and the length no morn than 3m.
The drive mode adopts the worm and worm gear to combine the screw rod transmission. This gate opener must be
installed inside the enclosure or yard for protection.

Preparation before Main Machine Installation

a) Before installing the door opener, please confirm that the door were installed correctly, please ensure that the
door can be manually operated smoothly, and the door limit stopper can effectively prevent the door to continue moving.

b) Please keep a distance of 40-50mm between the door bottom and the ground for installing the electric lock. If
electric lock is not required, the distance between the door bottom and the ground should be 20mm;

c) The recommended mounting height of the 2 main machines is around 300 ~ 800mm above the ground, and
make sure there are reliable fixed points for mounting brackets.

User manual

SW400DC User Manual with PK400DC PCB.pdf
