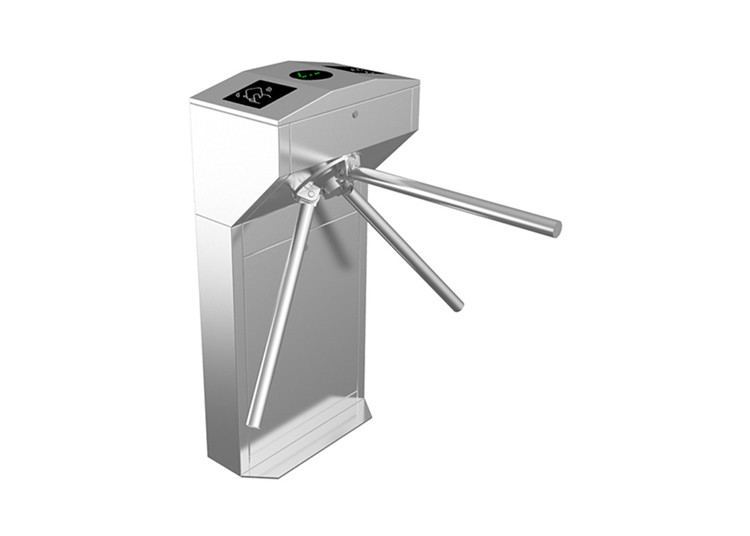

Security Tripod Turnstile Gate Fingerprint Face Recognition For Gyms Hotel Lobby
  • Security Tripod Turnstile Gate Fingerprint Face Recognition For Gyms Hotel Lobby
  • Security Tripod Turnstile Gate Fingerprint Face Recognition For Gyms Hotel Lobby

Security Tripod Turnstile Gate Fingerprint Face Recognition For Gyms Hotel Lobby

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Passing Speed:
30 ~35 Person/min
Control Voltage:
DC24V
Power Supply:
110V/220V (±10%)
Gate Open Signal:
Dry Contact/ Relay
Casing Material:
SS304/SS316/MS With Painting
Working Environment:
Indoor/ Outdoor
High Light:

Hotel Tripod Turnstile Gate

,

Lobby Tripod Turnstile Gate

,

DC24V three arm turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Fingerprint Face Recognition Security Portable Tripod Turnstile For Gyms



Product description



Tripod security gate is a three-arm turnstile gate that is used in the location that the controlled entrance and exit of crowds are needed. The tripod security gate runs smoothly and effectively by basic operation, and also prevents illegal in and out. Tripod security turnstile is a type of easy, economical crowd-organizing and reliable, entrance gate system. Tripod turnstile is a cost-effective turnstile that is suitable for various locations.



Security Tripod Turnstile Gate Fingerprint Face Recognition For Gyms Hotel Lobby 0



TECHNICIAN SPECIFICATIONS



Model No.
SN-TT01
Cabinet Material
304 Stainless Steel (default)
Dimensions
480*280*980mm
Weight
30KG
Arm Length
500mm
Passage Width
550mm~600mm
Control signal
Dry contact
Material Thickness
1.2mm
Card-reading Window
Two
Direction
Bidirectional
Service Life
at least 5 million times
Operating Temperature
-30℃ ~ +70℃
Related Humidity
≥90%RH
Communication Interface
TCP/IP
Power Supply
AC 220V/110V ±10% 50/60MHZ (optional)
Passing Speed
30-35 persons per minute



Main function and features



1. Tripod security gate is a compact and cost-effective entrance solution.


2. Tripod security gate has fully rainproofed 304 stainless steel housing, which is rust-resistant, solid, durable.


3. Tripod security turnstile can be mounted for both indoor and outdoor locations. The IP rate is 54


4. It has an international standard relay output, which can be easily integrated with all kinds of third-party access control systems (i.e RFID, Fingerprint, Face, Barcode, IR thermometer).


5. This model of Tripod security gate is a semi-automatic one. You will need to push the arm slightly to open the gate when access is granted.
The reasonable design and high performance are to ensure the gates can move quickly and accurately, stably and quietly; with low-power consumption, energy conservation, and environment protection.


6. Durable, corrosion-resistant, heavy-duty, mold mechanism for extended service life


7. The mechanism is mold design. All the components are precise. It makes the gate system operate smoothly, with low noise. A hydraulic damper can be added.


8. The design of the tripod security turnstile makes only one person pass at one time.



9. Single-directional or Bi-directional is supported.



10. LED directional indicator light on top of the housing


11. Automatic clock function: if there is an open signal received, but the visitor does not pass through the gate within a specific time (default 5s), the turnstile arm will lock automatically.


12. When power off, tripod turnstile arms will drop down automatically to allow free passage, which is complying with fire safety requirements.
