Automatic Barrier Gate
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG-AD01 |

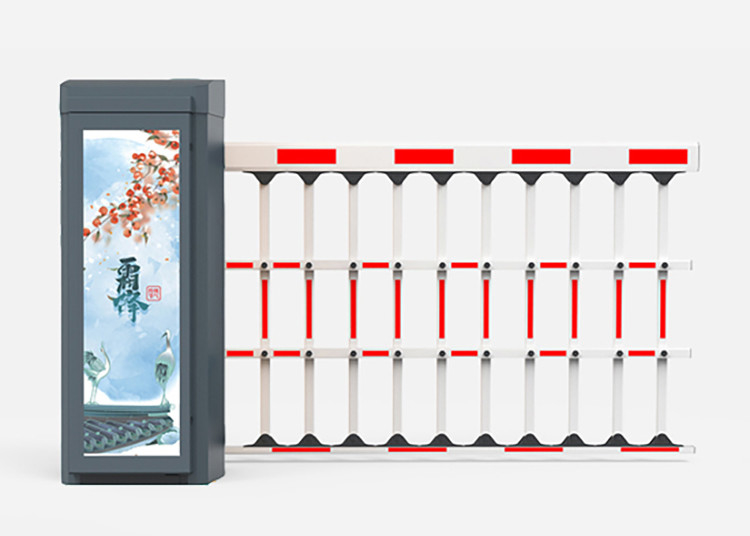

24VDC Brushless Motor Commercial Advertising Intelligent Fence Arm Barrier Gate
PRODUCT DESCRIPTION
This product adopts the latest mold design technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life, good tensile flexibility.
It is suitable for use in occasions where the traffic volume is large, the traffic is fast, and it is inconvenient to install the door.
Our Advantage
1. 3 second to 8 second open/close time adjustable;
2. Advertising DC brushless motor & 5 million MCBF;
3. 5 tension spring balance makes is heavy duty and more durable;
4.Led lights with time swtich ,set a time for light on as you require;
5. Simplified design, easy installation and maintenance reduces your labor cost;
8.1 year standard warranty, excellent after-sales service;
9. 24h*7d at your service to give you best support;
1 The running speed can be adjusted from 3sec to 8 sec.
2 Open the barrier by the motor wheel when the power is off. Automatically reset when power on.
3. Curved crank arm three-link movement structure, operation stable
4 Wireless remote control open and close.
5 Arm auto-reverse( force adjustable)
6 Infrared photocell is available
7 Loop detector is available
8 Connect parking management system open, close signal.(request open and close signal)
9 Traffic light port(2A12V/220VAC, less than 40W traffic light can be used)
10 Offering limit signal for car parking management system( output COM/NO/NC)
11 RS485 or CAN internet communication interface( no need to add module)
12 Counting interface
13 24 backup battery interface(can be connected with solar power)Offering dry contact signal for car parking system(COM,NC,NO)
14 Auto-delay when closing(adjustable)
15 RS485 or CAN network communication interface(no need to install module)
16 Counting interface
17 24V backup battery interface(Can be charged by using solar energy)
PRODUCT SPECIFICATIONS
| Name | SINOMATIC DC Advertising Gate Barrier |
| Close/Open time | 3s-8s adjustable |
| Arm Type | Advertising Arm/ Fencing arm |
| Material |
Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Cabinet Size | 465*360*1280 mm |
| Spring And Bearing | more durable, 5 million times through operation testing |
| Rating Power | 200w |
| Rating Voltage | DC 24V |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment
Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more than 10 years
2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application | SINOMATIC Advertising Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle while making profit, for parking lot, shopping center, exhibition center, hospitals,airport ,residential,shopping center,et |
PACKAGE
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
