| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SWB103 |

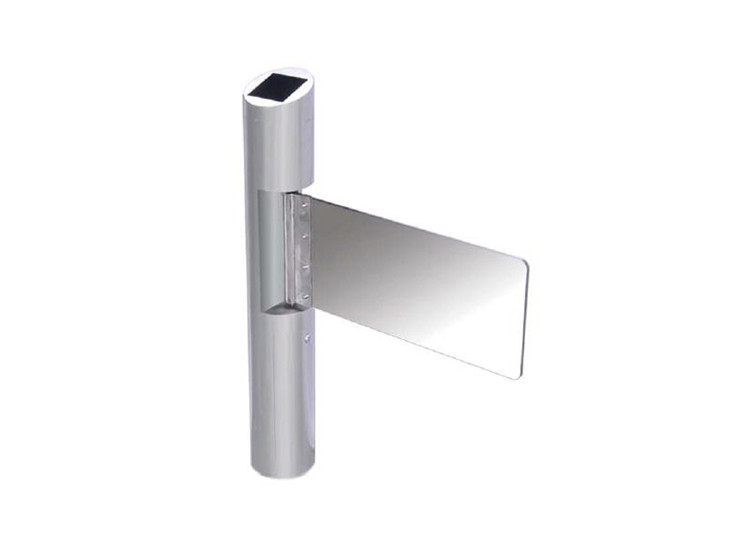

More Durable And Long Lasting DC Brushless Tubular Swing Barrier
Product description
SWB103 is an automatic motorized DC brushless tubular swing barrier. Swing barrier has smallest installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort.
SWB103 compact size and tubular shape allow it to easily fit into places with very limited space.Access control and time attendance reader can be integrated into top cover.
SWB103 design is simplified to achieve optimum function at more affordable cost.Control system mechanismis modular for easymaintenance servicing and part replacement.
SWB103 is typically used together with flap barrier or turnstile as manual lane for handicapped user in building lobby. ldeal for low traffic and light duty site that requires more affordable solution.
Technicial specifications
| Description | Parameters |
| Cabinet dimension | 168mm(Diameter)x 1050mm(H) |
| Weight | About 20kg |
|
Default gate length (transparent acrylic) |
450mm |
| Cabinet material | #304 stainless steel, 2.0mm |
| Power supply | AC100V~240V, DC24V |
| Motor voltage | DC24V (brush-less motor) |
| Access device input signal | Dry contact |
| Optimal flow rate | 30 person per minute |
| Gate swing angle | 90 deg per side |
| Gate opening speed | Programmable 0.9~2.8 sec |
| Initialization time | 14 sec |
| Working environment | Indoor/outdoor(with shelter) |
| Working temperature | -35°C~75°C |
| Relative humility | ≤90%, Non condensation |
| Power rating | 30W |
| IP rating | IP 54 |
Product advance features
for user friendly access control.
MAIN FUNCTION AND FEATURES
1. Stainless steel housing, rain-proof laser opening, novel and beautiful.
2. LINIX (the best micro-motor brand in China) brush-less DC motor is used and the surface is electroplated.
3. Length of arm: 500mm to 800mm.
4. Fault detection and alarm functions, easy to use and maintenance.
5. The running status can be programmed and controlled with the built-in keyboard on the main board.
6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working
automatically within the prescribed time and reset again after the default delay (till fully reset).
7. Anti-breakthrough function. The gate is locked automatically until opening signal received.
8. Synchronization functions (for dual gate equipment).
9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),
the system will cancel the authority of the current user automatically.
10. Gate can be set as normally open or normally closed.
11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)
12. Direction can be set as unidirectional or bidirectional.
13. The device can be connected to management computer to realize remote control and management.
14. LED direction indicator (optional)
15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
16. Support infrared photocell for anti-pinch and reset function.
Product Application
The brush-less anti-collision swing barrier is an intelligent passage management equipment developed
and produced by our company. It integrates the exquisite mechanical transmission, microprocessor
control, voice and various reading and writing technologies. By configuring different reading and
writing equipment, the intelligent control and management of the passage can be completed. The
machine can realize the public channel's dissuade and access control
