600mm Width Full Height Barrier Sliding Glass Anti Pinch Breakthrough
  • 600mm Width Full Height Barrier Sliding Glass Anti Pinch Breakthrough
  • 600mm Width Full Height Barrier Sliding Glass Anti Pinch Breakthrough

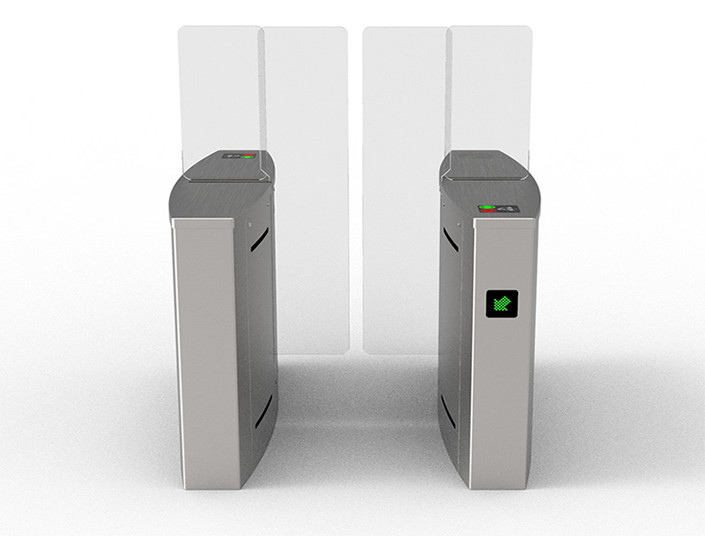

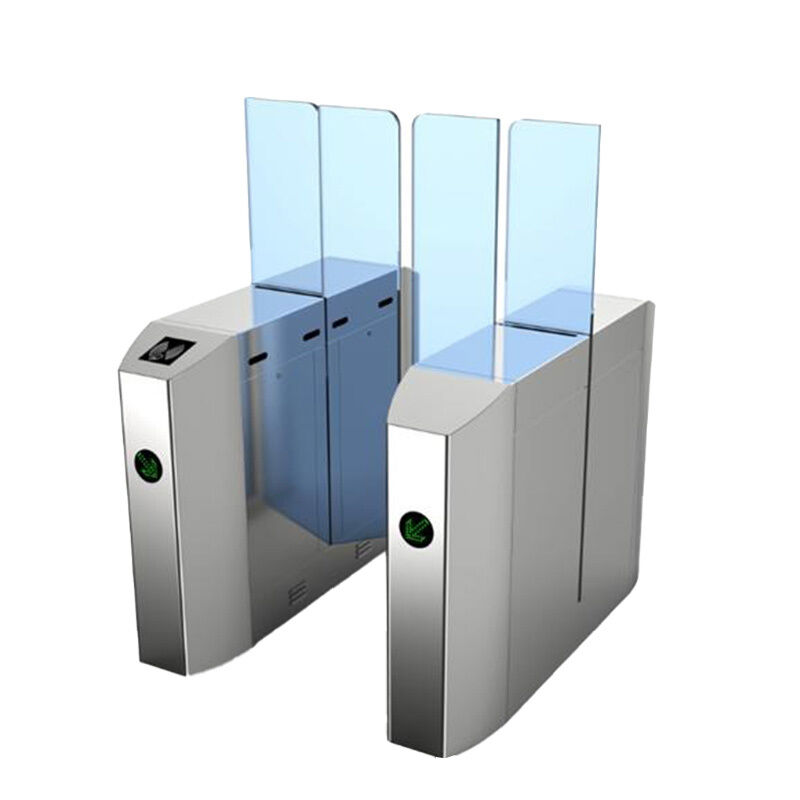

600mm Width Full Height Barrier Sliding Glass Anti Pinch Breakthrough

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Frame Dimension:
1200x300x1000 Mm
Barrier Height:
800 To 1500 Mm
Pass Speed:
30 Person/minute
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
Power Input:
AC220V/110V, 50/60Hz
High Light:

600mm Width Full Height Barrier

,

Anti Pinch Full Height Barrier

,

Anti Breakthrough Full Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

600 Mm Standard Passage Width Full Height Glass Barrier Sliding Turnstile



BASIC PARAMETERS



Name
Full height sliding turnstile
Type
Barrier Sliding
Brand
SINOMATIC/NEUTRAL
Material
304 Stainless Steel
Function
Access control
Arm Material
Acrylic
Dimension
1200 * 330 * 1000 mm
Net Weight
70kg/pc
Passage Width
600mm (standard)
Passing Direction
Single directional / Bi-directional
MCBF
5 million



PRODUCT FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance



2. The running status can be programmed and controlled with the built-in keyboard on the main board



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received



5. Support infrared photocell for anti-pinch and reset function



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically



7. Gate can be set as normally open or normally closed



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)



9. Direction can be set as single-direction or bi-direction



10. LED direction indicator



11. Gate auto opens when power off and auto close when power on



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



PRODUCTION PROCESS



600mm Width Full Height Barrier Sliding Glass Anti Pinch Breakthrough 0



PRODUCT SPECIFICATIONS



Model
SN-SLB02
Case Material
SS304, 1.2mm thickness
Production Process
CNC Laser Cutting
Size
1200*330*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
550mm
Flap height
1400mm(default)
Flap Material
Acrylic
Passage direction
Single directional/Bi-directional
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Reset Time after failure
10S
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~90%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA



High lights of our products



The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.


It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).



In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.
