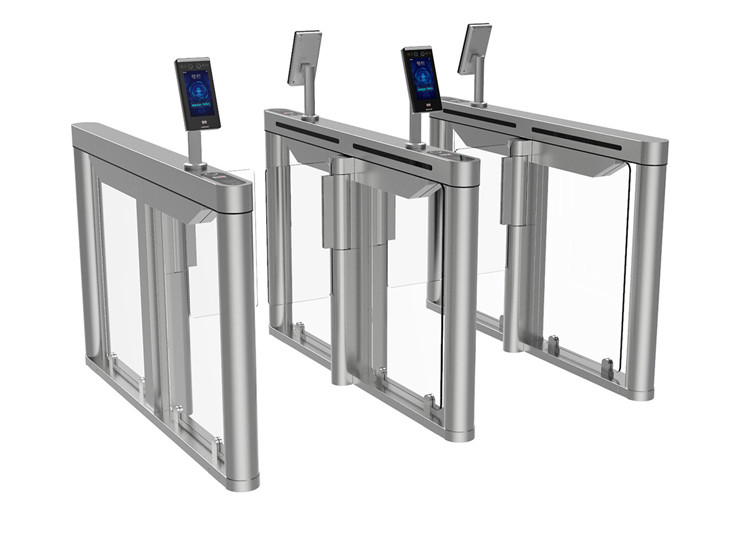

Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm
  • Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm
  • Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm
  • Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm

Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Case Material:
SS304(1.5mm, 2.0mm Optional)
Barrier Arm Material:
Transparent Acrylic(Color Optional)
Production Process:
CNC Laser Cutting
Flow Rate:
30~35 Person/minute
Size:
1200*150*1000 Mm(Customization Acceptable)
Swing Arm Rotation Angle:
180 Degree
High Light:

Biometric Vertical Turnstile Gate

,

SS304 Case Vertical Turnstile Gate

,

Transparent Acrylic Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

Biometric Vertical Entrance Security Automatic Fast Speed Swing Turnstile Gate



Product description



Swing turnstile Speed Gate is the intelligent access management produced by our company after several years R & D,

this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and

writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance

safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control

and management by the mutual coordination.



The whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting

external damage, adapoting standard electrical interface can easily integrate the bar code card, ID card, IC card and

other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can

prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention

requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.



Biometric Vertical Turnstile Gate SS304 Case Transparent Acrylic Arm 0



BASIC SPECIFICATIONS



Size: 1200x150x980mm (can be customzied)
Supply Voltage: 110V-240V, 50HZ/60Hz;

Working Voltage: DC24V
Relative humidity: ≤95%, No Condensation
Unlock time: 0.2s
Material: 304 stainless steel
Arms material: 10mm acrylic
Motor: Brushless Servo Motor



Model
SN-HSG01
Case Material
SS304(1.5mm, 2.0mm optional)
Barrier Arm Material
Transparent Acrylic(Color Optional)
Production Process
CNC Laser Cutting
Size
1200*150*1000mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Servo Motor Optional)
Electromagentic
Duty Cycle 100%
Barrier Arm Length
270mm ~450mm (Customization acceptable)
Passage Width
600mm to 900mm (Customization acceptable)
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on
3S
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-10℃~+50℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA



PRODUCT FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.



10. Anti - impact function, the flap automatic locked without the open signal.



PRODUCT Application



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of

staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent

community, enterprises and institution that need intelligent access management.



FAQ



1. What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2. What is  your flap gates opening and closing time ?
-------- <=0.4s .


3. What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
-------- Yes, Welcome . We are the manufacturer , We are welcome OEM .


5. What's you warranty?
-------- 1 year time warranty .
