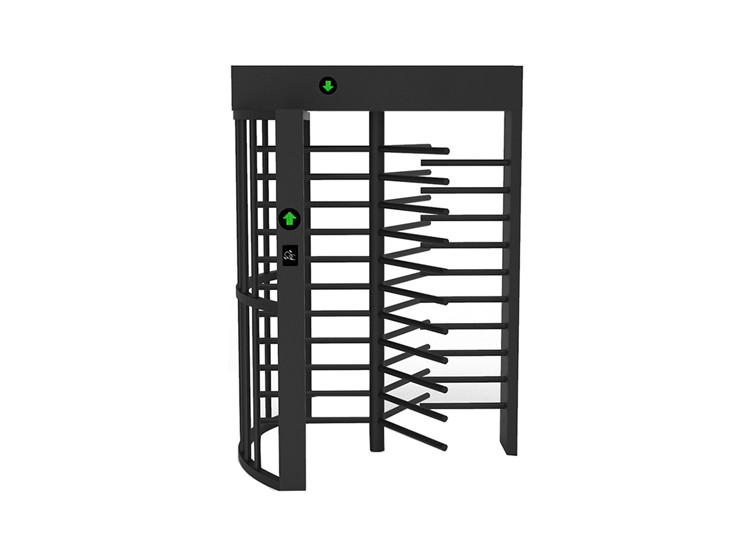

550mm Arm Full Height Turnstile Rainproof Housing Powder Coated SS316
  • 550mm Arm Full Height Turnstile Rainproof Housing Powder Coated SS316
  • 550mm Arm Full Height Turnstile Rainproof Housing Powder Coated SS316
  • 550mm Arm Full Height Turnstile Rainproof Housing Powder Coated SS316

550mm Arm Full Height Turnstile Rainproof Housing Powder Coated SS316

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Product Details
Material:
Mild Steel/SS304/SS316
Color:
Optional
Arm Length:
550mm To 600mm
Passage Width:
About 600mm
Rotor:
120 Degree Or 90 Degree
Drive Model:
Solenoid
High Light:

550mm Arm Full Height Turnstile

,

Rainproof Housing Full Height Turnstile

,

SS316 Waterproof Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

RAL BLACK COLOR POWDER COATED FULL HEIGHT SECURITY TURNSTILE



PRODUCT DESCRIPTION



Full height security turnstile is made of mild steel with painting or 304 brushed stainless steel which is high temperature

and corrosion resistance, durable dustproof, and rainproof design.



SINOMATIC full height turnstile gate is full soldering turnstile. The security turnstiles offers a reliable and efficient

method to ensure only authorized users are allowed access to each area of a building. It ensures vandal proof security

level to large variety of possible applications: stadiums, factories, parks, premises with highest security requirements etc.

Strength and durability is granted by robust fully welded design.



Using the standard electrical interface, compatible with ID/IC card, fingerprint, face recognition, an infrared detector,

temperature controller, Barcode/QR code, phone app, ESD system, visitor system, etc





TECHNICAL SPECIFICATIONS



Model
SN-FHT01
Material
1.2mm SS304
Pass Width
600mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/ Outdoor available
Communication interface
Dry contact/ Relay signal
MCBF
5,000,000 Cycles
Application
Stadium, Factory, Energy Park, etc





MAIN FUNCTION AND FEATURES



1. Long-life performance, high operation dependability and fast response


2. The mechanism is equipped with an automatic regulated hydraulic buffer device. Hardly any noise and impact

when running


3. Single directional or Bi-directional is selectable


4. Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time.


5. When power is off, arms will open automatically, which is complying with fire safety requirements.Fail secure

is optional.


6. LED indicator (red × means no entry; green → means entry)



7. Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.



8. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and

reduce maintenance cost.



9. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will

auto-rotate back to the current idle position.



10. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed

lightly to rotate therefore even elderly or children are able to use the turnstile.



11. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid

tampering.



12. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.



13. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc.

(Access controller needed)



14. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



15. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact

when running.
