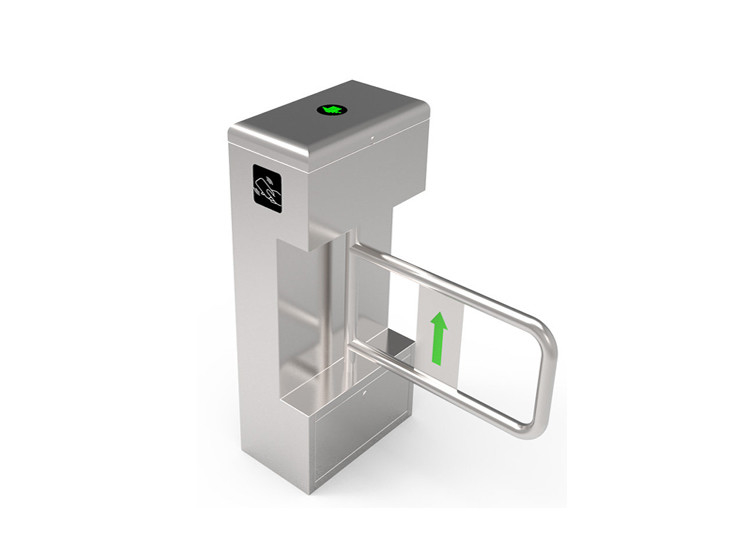

BLDC Motor Pedestrian Barrier Gate 800mm Arm DC24V One Way

PEDESTRIAN ONE WAY SWING GATE

swing barrier is a good solution for access control. Access can be controlled optionally. Barrier will open when it

receives signal of control system or remote control. And in-built alarm system will activate if an unauthorized person

tries to tail people or enter from the opposite direction. If people do not pass the barrier in time aſter get authorization,

barrier will close and reset.

As a high-performance security swing barrier turnstile gate, it can be used in many places by virtue of its many

advantages. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry

out intelligent management on passage. Material of Mild steel/SS304/SS316 are available. It is a small size which can

save space.

BASIC SPECIFICATIONS

Size: 420 * 330 * 980 mm
Max arm length: 800 mm
Passing speed: 30 person/min
Power supply: 110 V/220 V ;50/60 Hz
Driving Consumption: 40 W
In Gate Open Signal: Dry Contact/ Relay
Driving Motor: 24 V
Security turnstile gate Weight: 30 kg/pcs

MAIN FUNCTION AND FEATURES

1. Can integrate with access control system.

2. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on

swing barrier control panel.

3. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control

swing barrier opening and closing time.

4. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing

barrier will automatically close back to resume security level.

5. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release

reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control

panel from being damaged due to overload.

6. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way.

This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.

7. Gate length can be easily customized to fit site requirement.

8. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close

at the same time.

9. Gate motor mechanism is self lock at open and close position.

10. Support bi-directional opening

TECHNICIAL PARAMETERS
