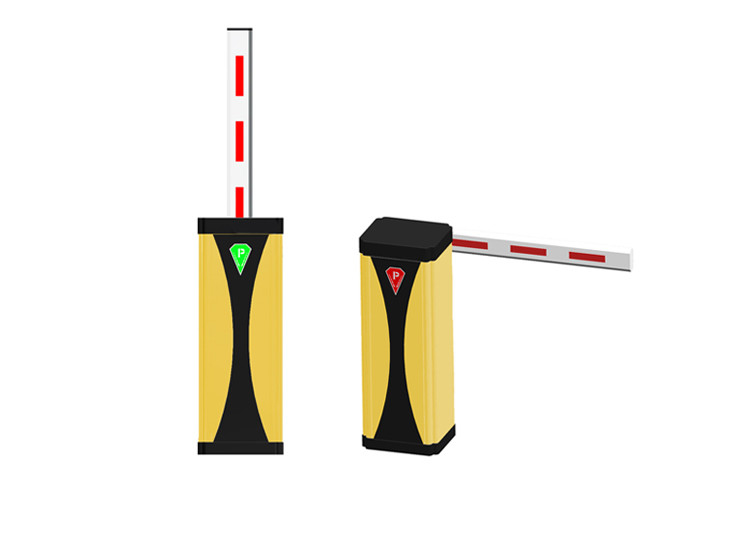

200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock
  • 200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock
  • 200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock
  • 200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock

200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number BG-K10
Product Details
Opening Speed:
0.6s~6s
Input Voltage:
220V/110V ±10%, DC24V/12V
Remote Distance:
>50M
Color:
Yellow/black
Motor Type:
Servo Motor
IP Rate:
IP44
High Light:

24VDC Parking Boom Barrier Gate

,

200W Parking Boom Barrier Gate

,

Anti Shock Parking Lot Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Anti-Crash Function OEM Manufacturer 24V DC Servo Motor Security Parking boom barrier gate



SINOMATIC DC Brushless Servo motorzied barrier gates model K10, the newly designed, maintenance free

with MicroDrive unit offers 100% more torque, 100% duty, are the fastest toll barriers available with an opening

time as fast as 0.6 seconds. Opening speed is adjustable from 0.6s to 6s or more.



This Barrier use innovative technology design and manufactured with precision machinery to guarantee satisfaction

in quality and reliability for years to come. The barrier has been lab tested for more than 10 millions opening / closing

and still without any degrade in performance.



TECHNICIAL DATA



1 Working temperature (motor): -35°C~ + 85°C
2 Working Power: 220V±10%, 110V ±10%, DC24V
3 Motor Rated Power: 100/200W MAX
4 Humidity: ≤90% RH
5 Distance of remote control: L≥30M
6 Insulation Grade: F



200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock 0



ADVANTAGES FUNCTION AND FEATURES



1. NO SENSOR & LIMIT SWITCH

Innovative design which doesn’t need any sensor and limit switch.All control by SFMCU drive unit precisely.

Four main parts only, mechanical, motor, control unit, power supply.



2. MAINTENANCE FREE

DC Brushless Servo motor doesn’t need a carbon brush while brush motor request you replace the carbon

brush in a certain time. Galvanized and powder coated parts are anti-rust ensure long term usage.

And no other smaller parts need to be maintain too.



3. 24/7 CONTINUS OPERATION

With a very smooth and quiet motorized drive mechanism, Open

and close very stable, offer maximum reliability at fast speeds, in 7*24 hours non-stop usage.



4. SPEED ADJUSTABLE

Our DC servo barrier gate allows you to set opening and closingspeed according to requirements. Shorter arm,

the faster speed can be set.



5. EASY INTEGRATION

Access Reader or Push button or remote controller can be used to trigger the barrier gate to open via a simply

dry contact signal. After delay timer elapsed, barrier gate will close automatically by itself in a certain time(optional function)



6. USER FRIENDLY

Motorized arms provide comfortable passage while maintaining a high level and high density of car flow

management, such as in toll gate.



7. EASY INTEGRATION

Access Reader or Push button or remote controller can be used totrigger the barrier gate to open via a

simply dry contact signal.After delay timer elapsed, barrier gate will close automatically byitself in a certain

time(optional function)



8. AUTO-RECOVERY

When power off, barrier arm can be lifted up by manual for a free exit. When power supply is restored,

Barrier gate will automatically return to close position.



9. Auto Testing Mode

Control board can set auto testing mode



SPECIFICATIONS



Max. Straight Arm 2.5m 3m 4.5m 6m
Opening time (sec) 0.6 0.9 1~3s 2~5s
Speed range 0.6, 0.9 ~ 6(s)
Motor rated Power 100W
Duty cycle 100%
Supply voltage 220V/110V, or DC24V/12V
Frequency 50HZ/60HZ
Drive system SFMCU
Housing Dimensions 340*290*940mm

Weight

(without boom)

Mechanism: 25kgs,

Gate: 48KGS

Protection class IP54
Temperature range -35 to 70 ℃





200W 24VDC Parking Boom Barrier Gate Servo Motor Anti Shock 1
