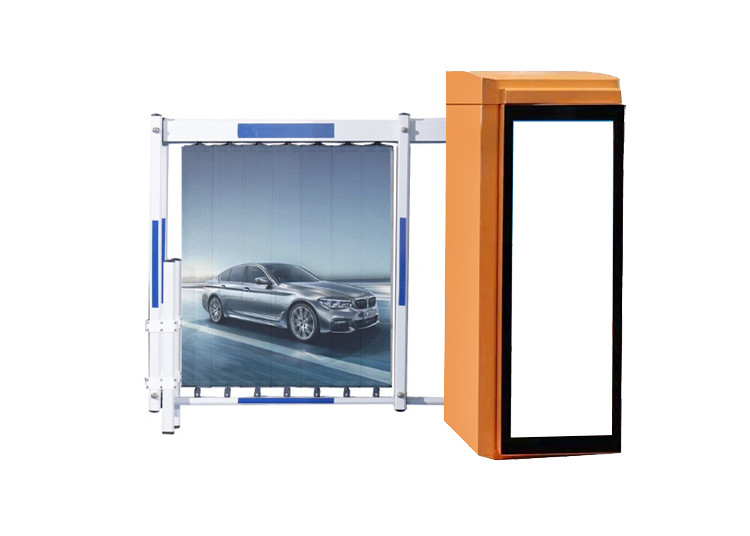

250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless
  • 250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless
  • 250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless
  • 250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless

250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BGA1
Product Details
Motor Type:
DC Brushless
Arm Type:
Advertising Arm
Housing Material:
1.5mm Cold Roller Steel Plate
Rated Voltage:
DC 24V
Max Boom Lenght:
4.5 Meters
Warranty:
At Least 12 Months
High Light:

24VDC Car Parking Barriers Gate

,

250W Car Parking Barriers Gate

,

DC Brushless Traffic Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
1,000pcs per month
Product Description

CE ISO Certificate Advertising DC Brush-less 24 V Motor Car Parking Barriers Gate





Thank you for purchasing the DC bruhsless motor advertising barrier gate. This product adopts the latest mold design

technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life,

good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more

convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm and three connecting

rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.



MAIN FUNCTION AND FEATURES



* Open/close time 3sec to 10 sec adjustable
* System automatically self-checks operation status with LED display
* Time switch LED lights enable you to turn on the lights at a proper time
* 5 flexible tension spring balance makes it heavy duty and more durable
* Manually control in case of power failure
* Wireless remote control open and close.
* Safety of Vehicle--- Boom Auto-reversing on Obstacle
* Heavy-duty and simple-design housing
* Anti-condensation in cold climate



Technical parameters



1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:3s-10s

4 Rated current:9.5A

5 Rated power:250W

6 No-load speed:2500rpm

7 Rated speed:1800rpm

8 Output Power:120N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP44

12 Max length of arm:4.5M



Arm type, arm lenght and opertation time



Arm Type Arm length(L) Operation time(S) Center height (H)
Advertising arm 4.5m 8S H=1.04M,Height of arm center above the ground
3.8m 6S
3m 4S



250W 24VDC Car Parking Barriers Gate Advertising Arm DC Brushless 0





Product features



1. Open and close speed adjustable

2. Arm direction Left and Right can change easily

3. When power off, manual open and close arm, and lock itself.

4. Wireless remote

5. Photocell I0 port output

6. Loop detector anti-collision I0 output

7. Open and close control input

8. 12V traffic light output

9. Traffic light signal output

10. Open and close limit signal output

11.Counting (fleet) input RS485 communication input

12. 24V battery input port

13. Delay close arm function(1-300 sec. Adjustable)

14. Open and close arm speed deceleration function

15. One-key setting arm type with corresponding speed

16. Arm auto reverse function ( Force adjustable)

17. Anti-collision alarm function (additional sensors and alarms are required)



PRODUCT SPECIFICATIONS



Item
value
Place of Origin
China
Power supply
DC24V
Brand Name
SINOMATIC
Model Number
DC Advertising gate barrier
MCBF
5 Million Cycles
Boom Length
Max 4.5 meters
Safety of Car
Auto-reversing on obstacle
Open/Close Time
3s ec to 8 sec adjustable
Working temperature
-35℃ ~ +85℃
Motor
DC Brushless Advertising Motor
Protection Grade
IP44
Housing color
Grey ,Orange or customized
Certificate
CE ISO



Boom position adjustment



1 First please set the arm horizontally and vertically through regulation nut to lengthen or shorten

the connecting rod.And then tighten M12 safety nuts.

2 To make the arm well balance,please adjust the M8*140MM spring regulating screw accordingly.

3 For the barrier gate with double springs,please adjust the two springs simultaneously.

4See the above picture when the arm is shaking during opening and closing. When the arm is shaking

during opening, that means that the spring is too tight, you can try to loosen the spring repeatedly.

When the arm is shaking during closing, that means that the spring is too loose. You can try to tighten the spring multiple times.
