Full Height Turnstile
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-FHT02-90 |

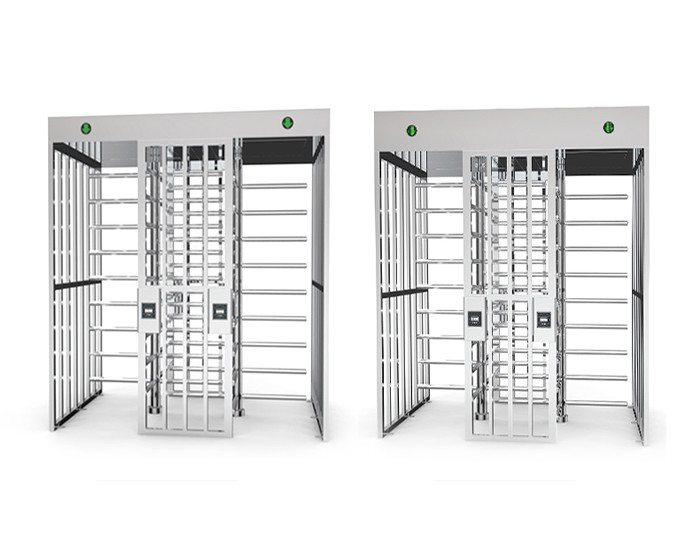

304 Stainless Steel Face Recognition Fingerprint Reader NFC Supported Full Height Turnstile Gate
Introduction:
This turnstile adopts our patented appearance chassis,which is easy to use and convenient for overall maintenance.
The door is attracted by an electromagnet. When the door closing resistance is greater than the set value, the door
can be opened automatically.
The intelligent gate is an intelligent channel management device for contact channel detection and control, using our
latest mechatronics control and drive technology.
Authorized personnel can pass without any hindrance, without having to undergo a single inspection, reject unauthorized
access, and provide high quality entrance and exit control.
This full height turnstile gate is suitable for public places with low traffic flow. The service life and safety are the primary
considerations of this product. The whole system runs with steplesssub-positioning device to achieve smooth operation,
low noise and less wear. After a large number of project actual use data summary, the actual service life of the equipment
is more than 5 million times.
APPLICATIONS
The Full Height Turnstile can be widely used in some high security places, typical areas of application are: prison,
stadium, parking system area , and so on.
Basic parameters:
| Dimensions | 2300*1377*2240mm |
| Cabinet material | 38 round tube, 1.5mm 304 Stainless Steel |
| Channel width | About 600mm |
| Ambient temperature | -20 degrees to 60 degrees |
| Working environment | indoor and outdoor (outdoor canopy) |
Technical Parameters:
| Input voltage | 100V~240V |
| Driving voltage | 24V |
| Equipment power | 30W |
| Response time | 0.2S |
| Passing speed | 30 people / min |
| Communication interface | RS485 |
| Communication distance | Less than 1200m |
| Open brake signal input | Dry contact |
| Switching door time | Less than 1S |
STANDARD FEATURES & FUNCTIONS
1. Lowest Noise : No matter in operating or outside control, Noise control under 30db
2. Self-checking and Alarm warning for maintainence
3. Anti-following : prevent illegal passing
4. Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
5. The rotary wings will be locked automatically if the system do not receive IR signal
6. Multi-passage for variety application demands , cover 99% needs on earth
7. Programmable signal separate control : pass time,pass speed etc. parameter
8. Compatible with IC/ID card reader, fingerprint reader, face recognition devices.
9. Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
Optional & Customized Functions
| 1. | Alternative Materials, Finishes and Custom Design. |
| 2. | Usage LED Counter function. |
| 3. | Audio and visual alarm in the event of an invalid entry or exit and tailgating. |
| 4. | Access Control System Integration. |
| 5. | Camera System Integration. |
| 6. | Thermostat System Integration. |
