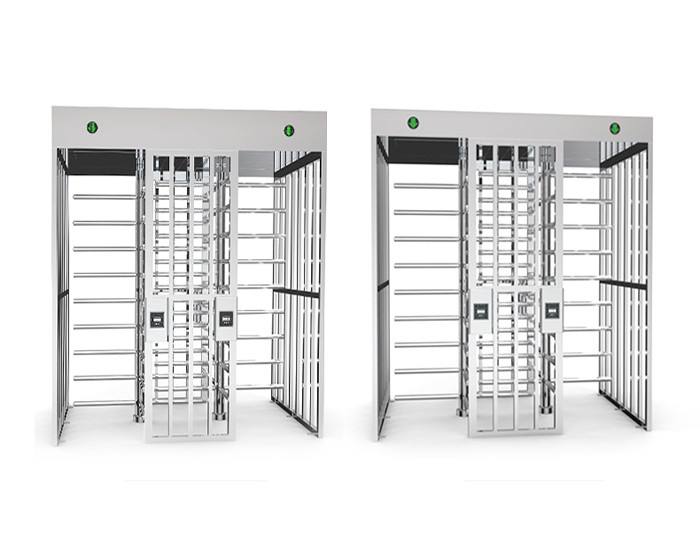

IP45 40W Mechanical Turnstile Gate Full Height Access Control ESD system
  • IP45 40W Mechanical Turnstile Gate Full Height Access Control ESD system
  • IP45 40W Mechanical Turnstile Gate Full Height Access Control ESD system

IP45 40W Mechanical Turnstile Gate Full Height Access Control ESD system

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT02-90
Product Details
Rotor Angle:
90 Degree (120 Degree Optional)
Control Voltage:
24V
Mechanism:
Semi-auto(motor Free)
IP Grade:
IP45
Service Life:
At Least 5 Million Times
Package:
Plywood Box
High Light:

IP45 Mechanical Turnstile Gate

,

40W Mechanical Turnstile Gate

,

ESD System Pedestrian Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,00pcs per month
Product Description

High Security Full Height Access Control Mechanical Turnstile Gate Stadiums Factory Entry And Exit



APPLICATIONS


The Full Height Turnstile can be widely used in some high security places, typical areas of application are: prison,

stadium, parking system area , and so on.





STANDARD FEATURES & FUNCTIONS



1. The turnstile system can easily integrates with the 3rd party equipment, such as Biometric reader,consumption

system, ESD system and access control system etc, Rapid identification technique, available to identify accurately

and efficiently the magnetic card, bar code card, ID/IC card etc.



2. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled

by switch- button or access controller.



3. Available with 3-arm, 120 degree spacing (default) or 4-arm, 90 degree spacing (optional).



4. Anti backup function: to prevent reverse rotation once the mechanism has move 45 degree from home.



5. When power off, the center rotor will be set free model (default) or be locked model (optional).



6. Emergency-escape function: the center rotor will be set free automatically if there is fire alarm (optional)



7. Reset automatically function: Go signal will be cancelled if passage through is not completed within pre-set time.



8. Remote control and management function: Through the management computer to realize remote control and management.



9. Sense positioning, reducing mechanical impact make lifetime longer



10. Operating efficiency, 1~2 seconds open & close



11. Lowest Noise : No matter in operating or outside control, Noise control under 30db



12. Self-checking and Alarm warning for maintainence



14. Anti-following : prevent illegal passing



15. Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay



16. The rotary wings will be locked automatically if the system do not receive IR signal



17. Multi-passage for variety application demands , cover 99% needs on earth



18. Programmable signal separate control : pass time,pass speed etc. parameter



19. Compatible with IC/ID card reader, fingerprint reader, face recognition devices.



20. Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm





PRODUCT SPECIFICATIONS



ITEM SPECIFICATIONS
Dimensions 2300*1370*2300mm
Cabinet material 38 round tube, 1.2mm Mild steel or SS304/316
Channel width 600mm
Ambient temperature -20 degrees to 60 degrees
Working environment indoor and outdoor (outdoor canopy)
Input voltage 100V~240V
Driving voltage 24V
Equipment power 40W
Response time 0.2S
Passing speed 30 people / min
Communication distance Less than 1200m
Open brake signal input Dry contact
Switching door time Less than 1S



Optional & Customized Functions



1. Alternative Materials, Finishes and Custom Design.
2. Usage LED Counter function.
3. Audio and visual alarm in the event of an invalid entry or exit and tailgating.
4. Access Control System Integration.
5. Camera System Integration.
6. Thermostat System Integration.
