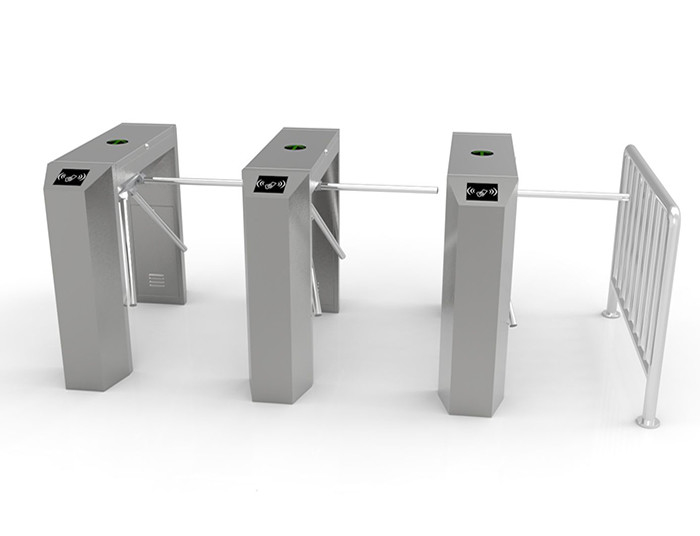

Self Lock Auto Rotate Tripod Turnstile Gate Half Height 510mm Arm
  • Self Lock Auto Rotate Tripod Turnstile Gate Half Height 510mm Arm
  • Self Lock Auto Rotate Tripod Turnstile Gate Half Height 510mm Arm

Self Lock Auto Rotate Tripod Turnstile Gate Half Height 510mm Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT02
Product Details
Material:
SS304
Arm Length:
510mm
Power Supply:
AC110V/AC220V±10% 50-60Hz
Warranty:
12 Months
Control Signal:
Dry Contact
Land Width:
550mm
High Light:

Self Lock Tripod Turnstile Gate

,

Auto Rotate Tripod Turnstile Gate

,

Pedestrian Turnstile Gate 510mm Arm

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Semi Automatic Drop Arm Half Height Pedestrian Control Tripod Turnstile Gate Mechanism



Product description



Tripod turnstile gate is an electro economical turnstiles. Its unique mechanical drive design allow the arm to be

pushed effortlessly and auto-rotate back without any expensive electric motor.



It can effectively control high volume human traffic ( up to 35 person per minutes ) while still maintaining a welcoming

atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance.



It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit.

Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways

and other places.







FUNCTION AND FEATURES



1. Auto-reposition function: After card read, passengers don‘t pass within regulated time period, turnstile will be locked automatically



2. Bi-direction passing or uni-direction



3. When power off, arm will be dropped automatically



4. Self-lock function: arm will be locked automatically after passenger passing



5. LED passing arrow can show direction to indicate passenger to pass



6. Standard interfaces are convenient for connection with different readers which can send relay signal



7. Stable running with little noise.



8. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.



9. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.



10. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



11. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.



TECHNICIAL SPECIFICATIONS



PRODUCT INFORMATION
Model SN-TT02
Brand SINOMATIC
Size/Stick length 1200*280*980(mm)/free of case 510(mm)
Arm length 500mm(norm)
Material SUS304 thickness(1.2mm)
Input Voltage 110V/220V ±10%
Driving motor 24V
Failure-free operation 5 million/time
Weight 50kg
Traffic speed 30 persons/min
Flap Opening/Closing Time 0.2s
Channel width ≤600mm
Operating temperature -30℃—+70℃
Communication interface Dry contact
Working environment indoor and outdoor
