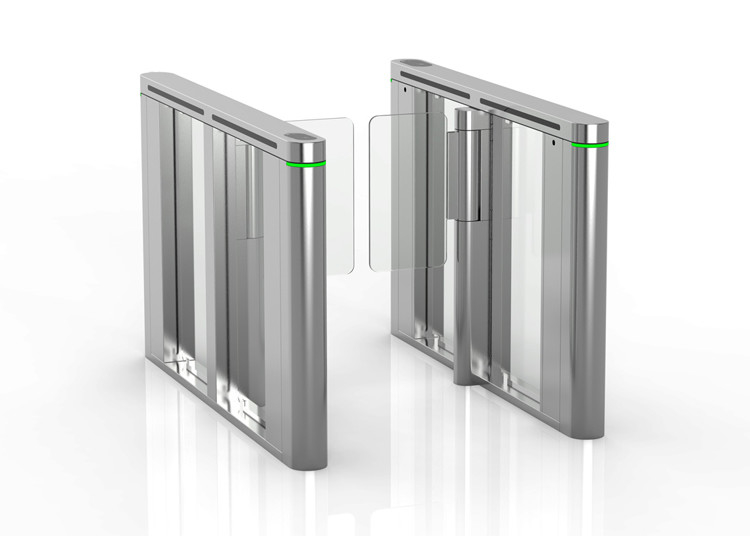

24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable
  • 24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable
  • 24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable
  • 24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable

24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Barrier Material:
Acrylic (color Optional)
Packing Material:
Plywood Box
Normal Running Life:
> 5 Million Times
Motor:
24V/40W DC Motor
Channel Width:
500mm To 1000mm
Package:
Plywood
High Light:

24V BLDC Pedestrian Swing Gate

,

1000mm Channel Pedestrian Swing Gate

,

TCP Adjustable Swing Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

Fast response time and high processing capacity 24V BLDC motor 40W high speed gate



GENERAN DESCRIPTION



The speed gate turnstile is with high-quality DC brushless/servo motor is configured and advanced control system

is carried to truly achieve precise control, stable performance with no maintenance.


It is a stainless steel swing turnstile with innovate design, high quality and fast controlling for entry and exit. It can be

controlled by RFID, barcode, fingerprint or facial verification device. The data transfers by TCP/IP or RS-485.



It's good for management of people's entry and exit in school, office, gym, residential, supermarket etc.







TECHNICAL SPECIFICATIONS





SPECIFICATIONS
Material
SS304,Acrylic
Finishing
Light wire drawing
Barrier Material
Acrylic glass
Input Voltage
AC100V~240V, DC24V
MCBF
5 Million/time
Traffic Speed
30~40 Persons/min
Flap Opening/Closing Time
Adjustable
Maximum Passage Width
500-1000mm
Control Signal
Relay switch signal/Dry contact signal
Swing Arm Drive Angle
180 degree
Communication interface
RS485,TCP/IP
Drive Motor
DC brushless motor
Running Mode
Full-auto
Pass
Uni-/Bi-direction pass adjustable
IP Grade
IP65
Dimension
L1200*W180*H1000mm
Operating Humidity
≤90%
Operating Tem.
-40℃~+70℃
Working Environment
Indoor and outdoor(with a tent over)





Optional & Customized Function

Alternative Materials, Finished and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry or exit and tailgating
Remote Controlled Button
Extra add sensors transmitter and receiver type
Infrared sensors reset function
Access Control System Integration
Camera System Integration
Thermostat System Integration
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.





24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable 0







MAIN FUNCTION AND FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.





FAQ



1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
