DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S
  • DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S
  • DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S
  • DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S

DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB05
Product Details
Control Voltage:
DC24V
Control Signal:
Relay
Passagewidth:
600(Standard)
MCBF:
5 Million Times
Cabinet Material:
SS304
Flap Material:
Acrylic, PU Foam
High Light:

DC24V SS304 Flap Barrier Gate

,

SS304 RS485 Flap Barrier Gate

,

0.2S RS485 Flap Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

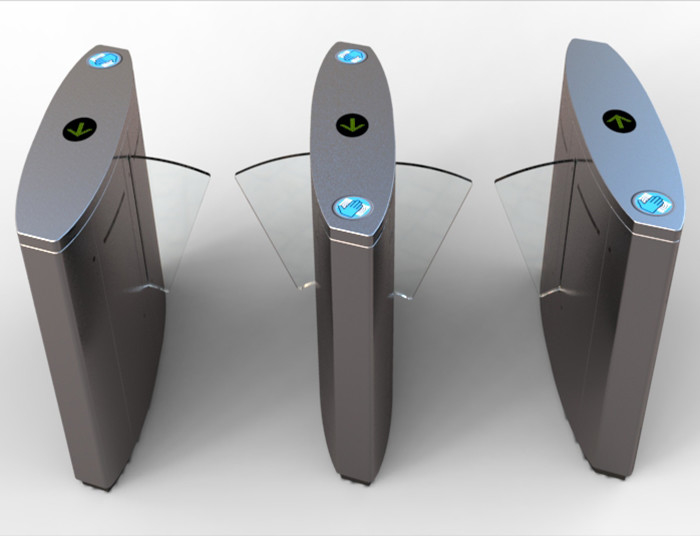

IP 54 Protection Grade Metro Entry BLDC Motor Retractable Flap Turnstile Gate



BRIEF INTRODUCTION OF FLAP BARRIER GATE



A flap barrier turnstile is used when both heightened security and electronic optical turnstile access control are desired.

These turnstiles provide a barrier to entry with a very pleasing and inviting appearance. A flap barrier turnstile is often

used in office buildings and reception areas, lobbies, modern subway and transit stations, and other high-end building

entrances.







MAIN FUNCTION AND FEATURES



1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic

indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;



2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the

traveler to swipe the card.



3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.



4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and

the device will alarm.



5.The bicycle delay function: prevent the gate from hitting the bicycle;



6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode,

which satisfies a large number of people.



7.The mode of choice: to meet the different requirements, it can be set up as a two-way card or a one-way card and free pass.



8.Various control functions: external button, remote control, bar code, IC or ID, etc.



9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake

machine.



10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel

the pass, time 1-60 seconds.



PRODCT SPECIFICATION



Model
SN-FB05
Size
1200*300*990mm
Material
Thickness 1.2mm SUS304
Passage Width
550mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working humidity
5%~95%
Working temperature
-40℃~+70℃
Communication interface
RS485, Dry contact
MCBF
5,000,000 Cycles
Application
Airports, Hotels, Governemnt Halls, etc





DC24V SS304 RS485 Flap Barrier Gate High Speed Sensitivity 0.2S 0



Application



Flap turnstiles are mainly used in parks, subway, customers, airport, bus station, office building, scenic spot,

community, attractions, and exhibition hall doors, residential, Construction Sites, Industrial Plants, Marquee Golf

Tournaments, State Fairs, Special Sporting Events and Festivals!



FAQ



1.Will you install the channel lock for the first time?

Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert

110V/220V power supply,



2.Can machines be used outside?

Answer:It can be used outside with shelter



3.What is the warranty for the machine?

Answer:(1) we guarantee all goods quality assurance for 12 months.

(2) within the warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)



4.When will you make the delivery?

Answer:regular products:(3-5 days),irregular products:communication when you place the order.



5.How does your factory control the quality?

Answer:We always attach great importance to quality controlling from the beginning to the ending.



6.What is your MOQ?

Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.



7.payment term?

Answer:30% by T/T in advance.70% by T/T before delivery.
