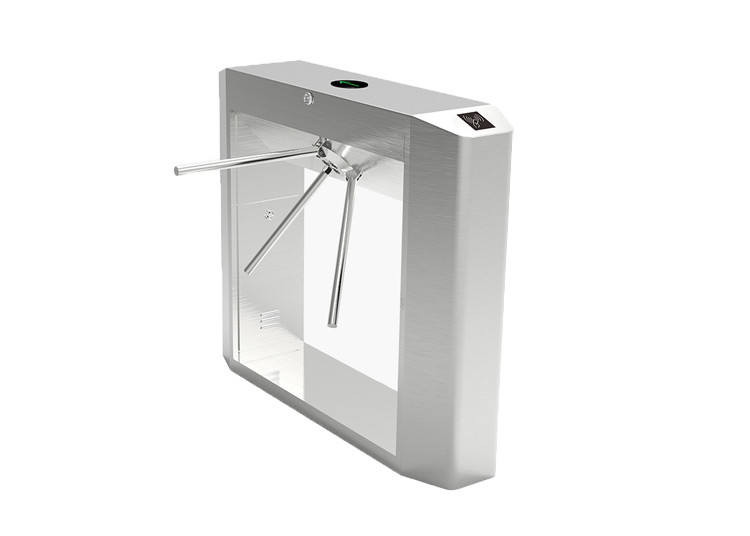

500mm Arm IP44 Access Control Tripod Turnstile Bridge 0.2S RFID
  • 500mm Arm  IP44 Access Control Tripod Turnstile Bridge 0.2S RFID
  • 500mm Arm  IP44 Access Control Tripod Turnstile Bridge 0.2S RFID

500mm Arm IP44 Access Control Tripod Turnstile Bridge 0.2S RFID

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT03
Product Details
Housing Dimension:
1200(L)*280(W)*980(H)mm
Packing Dimension:
1300*380*1150mm
Material:
SS304
IP Rate:
44
Input:
Dry Contact
Arm Lenght:
500mm
High Light:

IP44 Access Control Tripod Turnstile

,

500mm Arm Access Control Tripod Turnstile

,

0.2S RFID Waist Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

Bridge Waist Height RFID Reader Access Control China Tripod Turnstile Manufacturer



PRODUCT DESCRIPTIONS



Bridge type tripod turnstile is the most basic series in pedestrian auto gate. It is easy to use, stable and economical.

There is ample space inside to support the integration of third-party authentication devices, such as qr code scanner,

face recognition reader, fingerprint reader, card collector, coin collector, ESD tester, etc...



FEATURES



◆ Start up self-test function, automatic recovery in locked state.
◆ Direction adjustable, one-way pass, bi-direction pass.
◆ Channel free pass in emergency situation.
◆ Reserved standard IO interface for third-party access control system.
◆ LED indication to prompt passway status.
◆ Gate auto lock after people swipe card and not pass.

◆ Prevent pedestrians from going retrograde
◆ Prevent pedestrians from following





TECHNICAL SPECIFICATIONS



Model
SN-TT03
Size
1200*280*980mm
Material
1.2mm SS304
Pass Width
550mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-20℃~+60℃
Working environment
Indoor/outdoor
Communication interface
Dry contact
Mechanism
Mould machine core+mould bracket+Domestic solenoid



MAIN FUNCTIONS AND FEATURES



1) The entire system runs smoothly, with a small noise and free of mechanical impact.



2) Semi-automatic mechanism, Maintenance Free



3) It has failure self-detect and alarm indication function, facilitating maintenance and application for the users.



4) It is provided with multiple operation modes for selection. It can either read card in double way for flow limit,

or reading card in a way while barring in the other, or read card in a way while free passage in the other.



5) It has automatic function of dropping arm when power off.



6) The equipment is provided with a unified, standard electric interface and is available to be integrated with

various read/write facilities to facilitate the system integration. It is able to realize far end control and management

with the help of administrative computer.



7) It has a function of reading card with or without memory, and it may be set up with the built-in small keyboard

in accordance with the requirements of the users.



8) Self resetting function, the system will cancel the people passing right when reading the card but not passing,



9) Direction indicator function, showing passing or prohibiting for the people



10) Prohibiting opposite direction passing, one side reading the card, the other side will lock when you passing

forcedly; the locking time can be set, and unlocked by the card.



11) Prohibiting illegal passing, the turnstile without the card, the locking time can be set, and unlocked by the card.



12) Anti-hit against function, when the turnstile touches the passing people, it will stop and after several seconds,

it will turn again.
