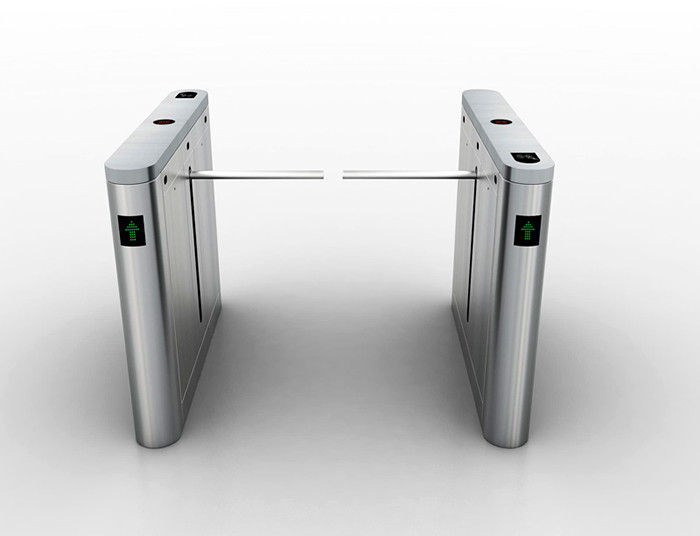

SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W
  • SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W
  • SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W
  • SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W

SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Motor Voltage:
24V
Service Life:
At Least 5 Million Times
Flow Rate:
30 Person/minute
Arm Lenght:
300mm To 500mm
Frame Material:
SS304/SS316
Packing Material:
Plywood Box
High Light:

IP54 Drop Arm Barrier Gate

,

SS316 Drop Arm Barrier Gate

,

Half Height Turnstile 40W

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

NFC Automatic Access Control Drop Arm Turnstile For Entrance And Exit Gate



PRODUCT DESCRIPTION



The turnstile provides a basic bar to control access smoothly and effectively by basic Operation, and also prevent

illegal in and out. The machine is well in design, rustproof, durable And can resist external destroy.





System Integration of the arm drop turnstile


1) Alternative Materials, Finishes and Custom Design
2) Access control System Integration
3) Ticket System Integration
4) Camera System Integration
5) Thermostat System Integration
6) Remote-Controlled Button
7) Usage Counters
8) Waterproof and Dustproof Design: IP41 for mechanical module,IP65 for electric module



SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W 0



Feature of the Arm drop turnstile:



1. Fault detection and alarm functions, easy to use and maintenance


2. The running status can be programmed and controlled with the built-in keyboard on the main board


3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically

within the prescribed time and reset again after the default delay (till fully reset)


4. Anti-breakthrough function. The gate is locked automatically until opening signal received


5. Synchronization functions (for dual gate)


6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically


7. Gate can be set as normally open or normally closed


8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)


9. Direction can be set as single-direction or bi-direction


10. LED direction indicator


11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements


12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.


13. Counter function (optional)


14. Support infrared photocell for anti-pinch and reset function



PRODUCT SPECIFICATIONS




Model Number

SN-DAB02

Dimension
1200*165*990 mm

Housing Material

304# Stainless Steel

Arm Length
≤500 mm

Passing Speed
30 persons/min (Normal open)

Direction

Single way or double way

Operating temperature

20°C---70°C

Power
AC100V~240V, DC24V

Motor
40W/24V

Working power

DC24V

Running Life

More than 5 Millions

Opening/Closing time
1 second

Self checking time
3s

Certificates

CE

Protection level
IP54





SS316 IP54 Drop Arm Barrier Gate Access Control QR Barcode Scanner 40W 1





FAQ


1.What type of entry solutions do you carry?
We carry a full range of entry solutions including,tripod turnstile, full height turnstile,flap barrier swing gate and

speed gate etc.



2.Do you do customization?
Yes.we do customization with different sizes and different mechanics according to customer's needs



3.Are you a trading company?Do you only do assembly in house?
No.we are not trading company.Our factory manufactures most of the items including the simple housing till the

complicated mechanics.


4.Do you have inhouse engineering team?
Yes,we do have our inhouse engineeringteam which consist of R&D technical and software development team.



5.What type of access control comes with your machine?
Our machines can be tie with face ID fingerprint sensor,ID/IC card reader, QR code or bar code etc.
