100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile
  • 100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile
  • 100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile
  • 100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile

100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
Barrier Material:
Acrylic (color Optional)
Motor Type:
BLDC Motor
Packing Material:
Plywood Box
Normal Running Life:
> 5 Million Times
Motor Voltage:
DC24V
Power Supply Brand:
MEAN WELL From TAIWAN
High Light:

100W Acrylic Speed Gate Turnstile

,

AC100V Speed Gate Turnstile

,

24V BLDC Waist Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

Smooth Operating 24V BLDC Motorized AC 100V To 240V 100W Waist Hight Speed Gate Turnstile

Standard Features & Functions

1. Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
2. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
3. The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
4. Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
5. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation.
6. The running status of device can be set up through pressing the built-in small keyboard of the main control board.
7. The device is locked until a valid open signal is received.
8. Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
9. Light and sound alarm indication function, preventing illegal entry or irregular passing
10 To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
11 LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
12. Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.

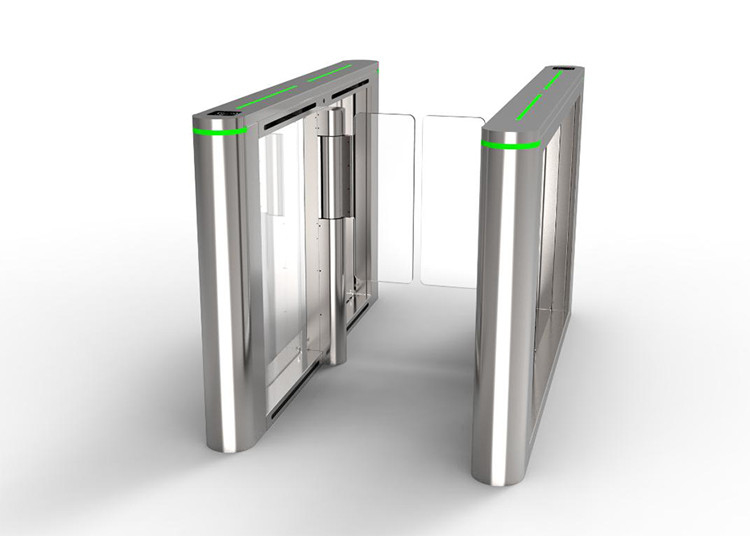

100W Acrylic AC100V Speed Gate Turnstile 24V BLDC Waist Height Turnstile 0



KEY FEATURES


1.Both Indoor and Outdoor
2.Led Screen Pass or Stop Sign
3.Moderate Level Security
4.One-directional or Bi-directional
5.Magnetic Card reader (optional)
6.Main body manufactured 1,2 mm stainless steel
7.In case of electric failures or cuts, the system pulls the wings in, releasing and unlocking the main mechanism
8.Plexi door panels suitable for signs ( STOP/ DISABLED)
9.Moderated with shock absorption while closing
10.Accessories Buton Unit and Remote Control
11.Modular design to ensure easy parts replacement
12.Operating Voltage : 220V AC- 24V DC



MAIN FUNCTION AND FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.



Optional & Customized Function

Alternative Materials, Finished and Custom Design
Usage LED Counter function
Audio and visual alarm in the event of an invalid entry or exit and tailgating
Remote Controlled Button
Extra add sensors transmitter and receiver type
Infrared sensors reset function
Access Control System Integration
Camera System Integration
Thermostat System Integration
Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.



FAQ



1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
