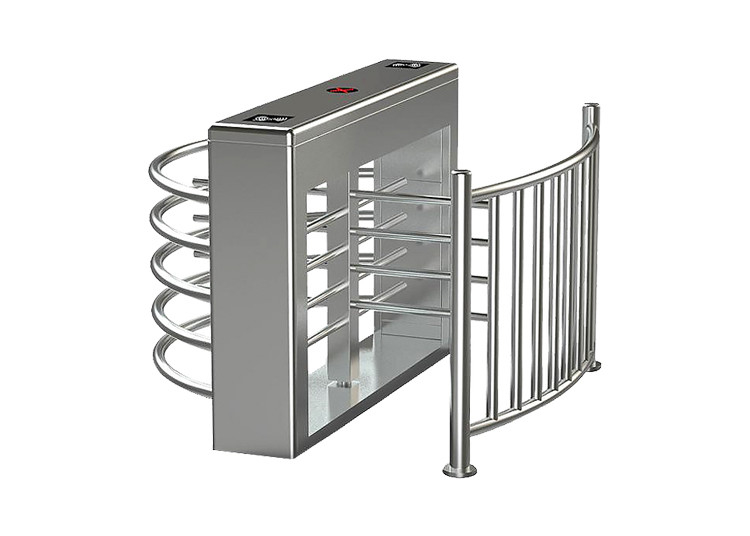

SUS304 DC24V 450mm Arm Waist High Turnstile Metal Wings LED Indicator
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-HHT01 |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-7working days after payment received for sample |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 3,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xControl Voltage | DC24V | Control Signal | Relay Switch Signal |
---|---|---|---|
Pass Speed | 30 Person/minute | Application | Indoor/outdoor |
Service Life | 5 Million Times At Least | IP Rate | IP55 |
High Light | 450mm Arm Waist High Turnstile,SUS304 DC24V Waist High Turnstile,LED Indicator Pedestrian Turnstile Gate |
90 Degree Rotary RFID Access SS304 Outdoor Waist Height Turnstiles
Product description
This waist-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation.
It is a type of outdoor/indoor half height turnstile with metal wings and support classic glass type design. Wings’ design
may be straight as well as U-shaped.
The range of modifications includes three and four wing types as well as different type of metal finishing.
It can be widely used in some high security places, such as prison, stadium, parking system area , and so on
SINOMATIC waist height turnstile gate is compatible with IC, ID, barcode, fingerprint reader and so on to prvoide
intelligent control and management to flow control. This turnstile series is made of 304/316 (optional) stainless
steel, which is rustproof, durable, and can provide orderly passage to people, anti-illegal entry or exit.
Turnstile type
PRODUCT APPLICATION
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
TECHNICAL SPECIFICATIONS
Item | SN-HHT01 |
Housing Material | 304 stainless steel |
Standard Size | L1200*W280*H1000(mm) |
Drive mechanism | Solenoid mechanism |
Arm Length | 450mm |
Pass Direction | single or bi-directional |
Arm Driving Force | 1kg |
LED Light | direction indication |
Working mechanism | 24V solenoid valve |
Working Environment | Indoor and Outdoor |
Work temperature | -20°C~60°C |
Normal Running Life | More than 5million |
Input interface | 12V pulse signal with pulse width >100ms, drive current >10mA |
MAIN FUNCTION AND FEATURES
1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2. The mechanism is equipped with an automatic regulated hydraulic buffer device. No noise and impact when
running.
3. Self-test function, when power on, system restoration automatic.
4. Dual-bearing device, keeping the gate in balance when there is external force.
5. Single directional or Bi-directional is selectable.
6. LED indicator supported
7. Automatic reset function: when Full Height Turnstile receives an open single, but passenger do not pass
through the hallway within a specific time (default 5s), turnstile arm will lock automatically. Limit passing time
(01-60 seconds), passing time can be set on Full Height Turnstile circuit board.
8. When power off, turnstile lane will be free to pass, complying with fire safety requirements.
9. The rotary wings will be locked automatically if the system do not receive IR signal
10. Multi-passage for variety application demands ,Cover 99% needs on earth
11. Programmable signal separate control : pass time,pass speed etc. parameters
