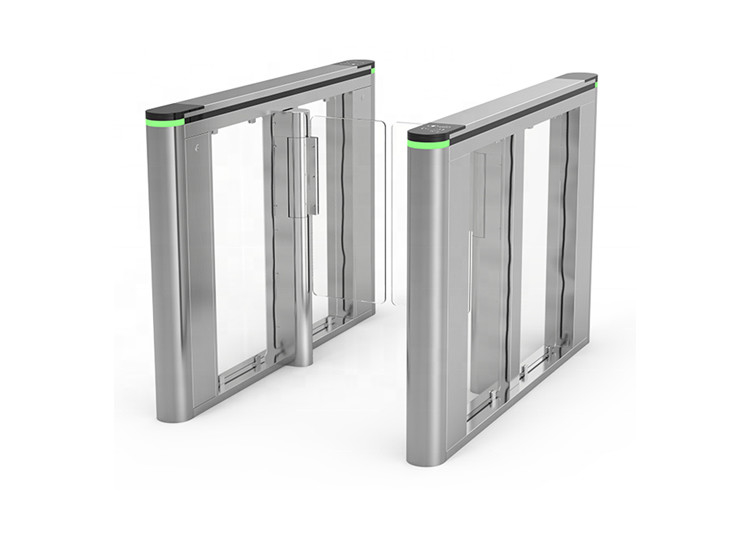

SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers
  • SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers
  • SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers
  • SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers

SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HSG01
Product Details
MTBF:
5,000,000 Cycles
Passage Width:
500mm To 900mm
Material:
SS304, Acrylic
Flow Rate:
30~40 Person/minute
Barrier Material:
Acrylic (color Optional)
Motor Type:
BLDC Motor
High Light:

SS304 Acrylic Pedestrian Swing Gate

,

Pedestrian Swing Gate RS485

,

BLDC Motor Swing Glass Barriers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
500 pcs per month
Product Description

High Security BLDC Motor Wide Pass Lane Access Control Swing Glass Barriers



PRODUCT DESCRIPTION



The whole product frame adopts stainless steel laser cutting, CNC bending forming, beautiful appearance,

simple control by high-performance control system.



The devices can conveniently integrate bar code, two-dimensional code, ID card, IC card and other reading

and writing devices on the device, thereby It provides an orderly and civilized way for the entry and exit

personnel, and can prevent illegal personnel from entering and leaving.



At the same time, in order to meet the requirements of the fire exit passage, a special fire button interface is

provided in the system, so that the gate can be automatically opened and the personnel evacuated in an

emergency.



PRODUCT APPLICATION



Intelligent high speed gate ---can be compatible with IC card, ID card, barcode card, fingerprint reading card

recognition device used for staff, provide civilized, orderly access methods; effectively manage the access of

staff. Can be widely used in the station, wharf subway, factories, office building, hotel, clubs, intelligent

community, enterprises and institution that need intelligent access management.

SS304 Acrylic Pedestrian Swing Gate RS485 BLDC Motor Swing Glass Barriers 0

OUR ADVANTAGES


* Precise and reliable brushless motor + encoder precision control + precision clutch, 8 million stable operation,

locker lock, unlock, run more accurate and reliable.

* Mechanical + infrared induction + circuit control triple anti-pinch anti-collision, illegal intrusion and trailing alarm,

free power failure, in line with fire requirements.

* The whole system runs smoothly and silently, and has fault self-test and alarm prompt function, which is

convenient for maintenance and use.





PRODUCT SPECIFICATIONS



Model
SN-HSG01
Size
1200x150x1000mm
Arm material
10mm Acrylic
Passage Width
500mm ~900mm
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor/outdoor with shelter
Communication interface
RS485, Dry contact
Infrared sensor
4 pairs (default)
MCBF
5,000,000 Cycles



PRODUCT FEATURES



1. The device adopts DC brush-less motor, which supports at least 5 million normal passages.



2. The device adopts multiple pairs of infrared detection sensors, and adopts anti-tailing tracking control technology,

which can be passed by authorized personnel. When unauthorized personnel enter, an audible and visual alarm will

be issued.


3. The device integrates a voice module which can customize the voice broadcast content according to user

requirements.


4. The device uses LED to indicate the traffic direction and display the traffic status.


5. The device has anti-shock function. When there is intrusion, the door wing is automatically locked.


6. The equipment has self-test, self-diagnosis, automatic alarm function, sound and light alarm function including

illegal intrusion alarm, reverse intrusion alarm, trailing alarm etc.


7. The device has an automatic reset function. When the gate does not pass within the specified time after opening

the door, the system will automatically cancel the user's permission for the current pass and set the transit time.


8. The device supports flexible configuration of the access status (controlled, free traffic, no traffic) in the inbound

and outbound directions.


9. The device supports the memory mode which enables continuous and fast traffic.





FAQ



1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.


2.What is  your flap gates opening and closing time ?
-------- <=0.4s .


3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)


4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .


5.What's you warranty?
-------- 1 year time warranty .
