Swing Barrier Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SB03 |

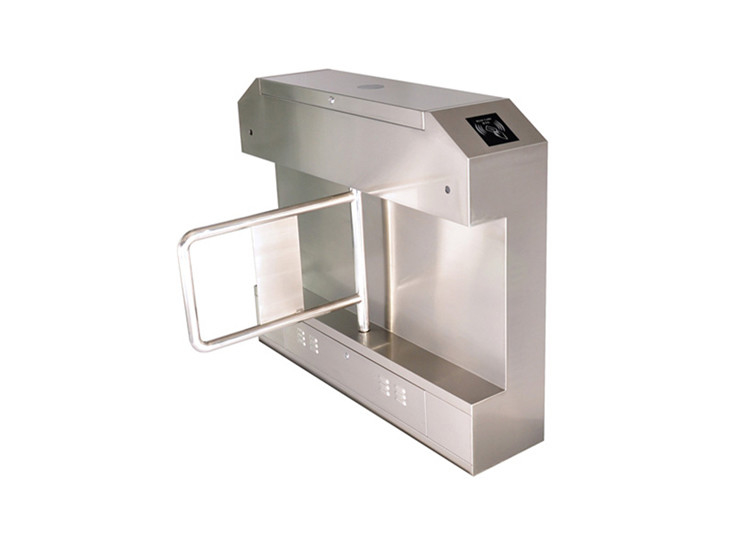

High Security Fully Automatic Pedestrian Access Control Battery-Free Barrier Gate
PRODUCT DESCRIPTION
SHENZHEN SINOMATIC Swing Turnstiles offer a reliable and efficient method to ensure only authorized users
are allowed access to each area of a building. The model SN-SB03 serials is an attractive swing turnstile that is
easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a
multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.
PRODUCT HIGHLIGHTS
The cabinet adopts high-standard welding technology, adds slot-throwing treatment, manual fine
grinding treatment, brushless motor anti-violent impact, can be automatically reset, built-in electronic control
circuit part adopts standard industrial-grade trunking layout fixed, and the whole electric control part All use
first-line brand parts, and the equipment life can be up to 5 million operations.
TECHNICIAL SPECIFICATIONS
|
Arm length(optional)
|
Max 800mm for one unit |
|
Angle
|
180 degrees( swing arm drive angle)
|
|
Swing direction
|
One-way/bi-direction
|
|
Supply Voltage
|
AC220/110V(±10%)V,50±10%Hz
|
|
Drive motor
|
DC brushless motor(24V)
|
|
Input interface
|
Dry contact signal or 12V level signal or 12V pulse signal with
|
|
Pulse width ≥100ms, drive current ≥10mA
|
|
|
Communication interface
|
RS485/IP/TCP
|
|
Indicator light
|
LED indicator, card reader
|
|
Opening Transit speed
|
40 persons per minute
|
|
Closing Transit speed
|
25-30 persons per minute
|
|
Flap Opening/Closing Time
|
1-2s
|
|
Power-on time
|
The time required to enter the passage state after power-on is 3s.
|
|
Work environment
|
Indoor/outdoor
|
|
Working temperature
|
-20℃ ~ 60℃
|
|
Humidity
|
≤90%( No condensation)
|
MAIN FUNCTIONS AND FEATURES
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset
again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force
collision.
6. Gates can be synchronous for multiple lanes
7.Auto-reset function. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable),
default time is 10s.
8. Reset function by photocells
9. Anti-pinch function by photocells
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software
PRODUCT APPLICATIONS
Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading
card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access
of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent
community , enterprises and institution that need intelligent access management.
