Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium
  • Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium
  • Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium
  • Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium

Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB04
Product Details
Reset Time When Power On:
3s
Control Voltage:
DC24V
Motor:
BLDC Motor
Warranty:
12 Months
Material:
1.2mm Thickness SS304
Surface Treatment:
Wire Drawing
High Light:

BLDC Motor Turnstile Flap Barrier

,

Wire Drawing Turnstile Flap Barrier

,

IP44 Retractable Flap Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

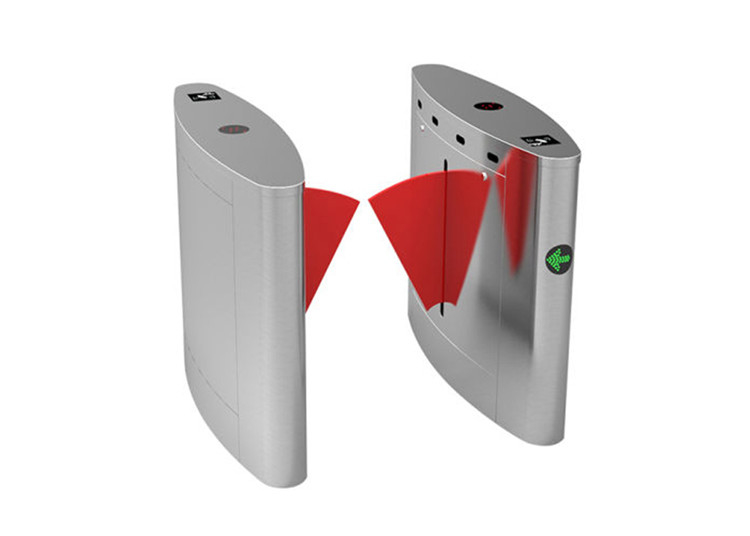

Access Control Electronic BLDC Motor High Speed Flap Barrier Gate For School Stadium



PRODUCT DESCRIPTION



The access control RFID system, face recognition, fingerprint, bar code or time attendance reader can easily

integrated into SINOMATIC flap barrier gate, which is an ideal solution for metro station, stadium, factory and

commercial building. The flap turnstile gates are well adopted in entrances and exits of buildings or construction

sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the

flap barriers entrance security gate.



Wire Drawing BLDC Motor Turnstile Flap Barrier IP44 For School Stadium 0



PRODUCT SPECIFICATIONS



Power supply AC220±10%V 50Hz/AC110±10% 60Hz, DC24V
Motor type BLDC 24V
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal,
driving current > 10mA
Direction Can be set as single or double
Max flow rate 30 person per minute
Flap openning/closing time 1s
Flap lenght 270mm
Passage width 600mm
Flap material Acrylic or foam
IP rate IP44
Working temperature -20°C~+60°C
Working humidity 0~95%RH
Application Indoor/ outdoor with tent



PRODUCT FUNCTION AND FEATURES



1.When power is off, flap arms will open automatically, which is complying with fire safety requirements



2.The whole system runs smoothly, low noise, no mechanical impact



3.Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion



4. Illegal intrusion, trailing alarm, reverse intrusion gate automatically closes



5.Anti-shock function, the arm is automatically locked when no open signal is received.



6.Telescopic arms are adjustable synchronously (for double pendulum)



7.Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction



8.Anti-intrusion function, the turnstile is locked automatically until valid opening signal input



9.It can be connected with a variety of devices such as access control systems, consumer systems, electronic

ticket systems, biometric systems, and electrostatic testers.



10.The one-way or two-way control personnel can enter and exit, and the infrared sensing in and out channels.



11.Voice prompt function.



12.Remote control and management can be achieved directly through the management computer.



13. Anti-trailing function, the turnstile alarm if someone wants to burst in without permission



14.Easy to install and maintain
