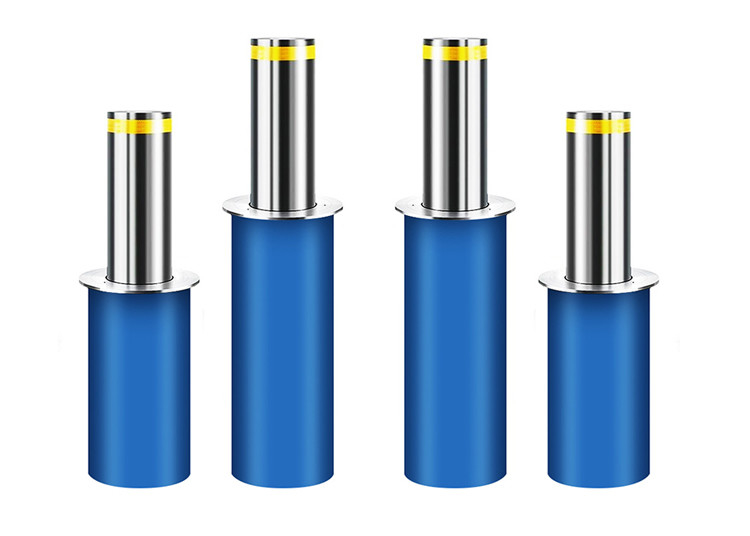

Impact Resistance Extended Security Automatic Rising Bollards Access Control
  • Impact Resistance Extended Security Automatic Rising Bollards Access Control
  • Impact Resistance Extended Security Automatic Rising Bollards Access Control
  • Impact Resistance Extended Security Automatic Rising Bollards Access Control

Impact Resistance Extended Security Automatic Rising Bollards Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Product Details
IP Grade:
IP68
Surface Treatment:
Brushed Finishing
Power Supply:
100V-240V
Control Voltage:
24V
Material:
SS304 Above Ground/mild Steel Under Ground
Service Life:
At Least 5 Million Times
High Light:

Extended Security Automatic Rising Bollards

,

Impact Resistance Automatic Rising Bollards

,

IP68 Access Control Rising Bollards

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, credit card/Cash/wechat
Supply Ability
1000 pcs a month
Product Description

Access Control And Impact Resistance Extended Security Automatic Rising Road Bollard



Product description



Conceived to ensure the safety of strategic access against ram-vehicles, Sinomatic introduces a range of bollards

to meet the most demanding requirement of access control and impact resistance at sites where extended security

is required. Automatic bollards limit vehicle access to a specific location and can automatically be lowered by the

push of a button, when passage is authorized.







Product Application



The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government

agencies, embassies,military bases, customs, banks, industrial and mining enterprises, ports, warehouses,

parking lots, and all places where vehicletraffic is restricted.



Product specifications



Product Name
Automatic hydraulic road bollard
Material
304 stainless steel
Control mode
integrated hydraulic and electro
Power supply
110V/220V/(control voltage 24V)
Bollard diameter
168mm, 219mm(default), 273mm, 324mm etc
Rising height
600mm(default), 800mm, 1000mm
Wall thickness 6mm(default), 8mm, 10mm, 15mm, 20mm
Waterproof degree
IP68
Surface treatment
brushed finishing
Operating Temperature
-40℃ to +70℃
Control model
push button/remote control standard, loop detector /card reader optional
Running speed
2-4S ( ascending )
Safety signs
reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder
stainless steel/plastic coating for steel tube Traffic Road Bollard,automatic bollards,cast iron road stake bollards
Optional Function
Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color
Brushed titanium gold, champagne, rose gold, Brown, red, purple,sapphire blue, gold, dark blue paint, chocolate,stainless steel,Chinese red paint





MAIN FUNCTION AND FEATURES



1. Different thickness of steel is available (default 6 mm)


2. Different colors are available


3. Customized size is available


4. Steady and safe due to the OMRON PLC control system


5. Speedy rising time and durable quality with hydraulic pressure

6. Housing with durable and stainless Galvanization


7. Optimization of the frame structure, high anti-impact capability, high loading capability


8. High security and anti-collision ability


9. With a reflective band and a low energy consumption LED light at night



10. Highly resistant to impacts and atmospheric elements.


11. Electro-hydraulic drive mechanisms.


12. Single or multiple units in row with one common drive unit


13. Robust construction with high impact resistance.


14. Illuminated ring composed of LED lights for enhanced visibility.
