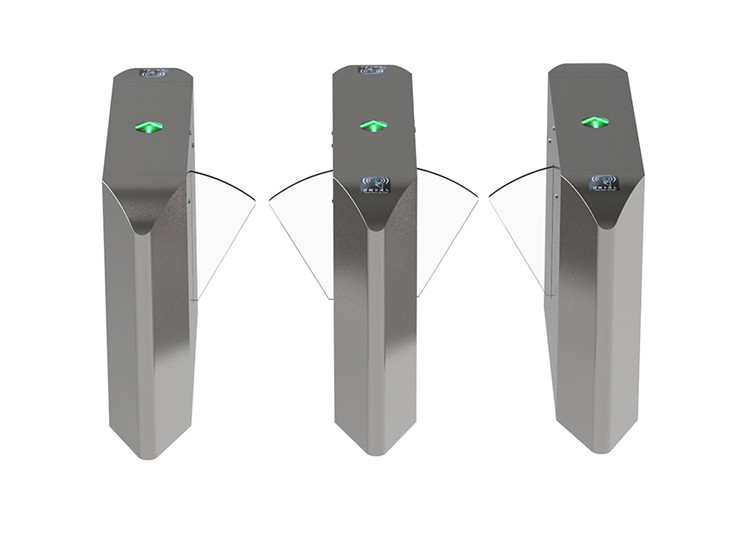

Brushless Motor Flow Control Flap Turnstile Gate Stainless Steel 304
  • Brushless Motor Flow Control Flap Turnstile Gate Stainless Steel 304
  • Brushless Motor Flow Control Flap Turnstile Gate Stainless Steel 304
  • Brushless Motor Flow Control Flap Turnstile Gate Stainless Steel 304

Brushless Motor Flow Control Flap Turnstile Gate Stainless Steel 304

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB03
Product Details
Material:
SS304/SS316 Stainless Steel
Thickness Of Material:
1.2mm
Direction:
Single Or Double
IP Grade:
IP44
Motor Type:
Brushless DC Motor
Motor Voltage:
DC24V
High Light:

Flow Control Flap Turnstile Gate

,

Brushless Motor Flap Turnstile Gate

,

Stainless Steel Turnstile Flap Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Stainless Steel 304 Smart Card Reader Entrance And Exit Flow Control Flap Turnstile Gate



Our advantages



1. Flaps open when power off, and auto-close when power on.

2. Compatible with diverse access control devices.

3. Pedestrian flow directions can be single or double directions.

4. Available for two-way traffic lights, which can prompt the state---pass or no-entry.



Product description



Flap barrier, also known as flap turnstile, is one type of the access management equipment, mainly used for



pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian



high frequency access mangment equipment,organically integrating machinery electronics microprocessor control,



and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing



equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator



interface, realizing the access intelligent control and management by the mutual coordination .







PRODUCT SPECIFICATIONS



Model
SN-FB03
Case Material
SS304(1.2mm)
Flap Material
Acrylic, Foam
Production Process
CNC Laser Cutting
Size
1200*300*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Arm Length
260mm
Passage Width
600mm
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
IP grade
IP44
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
LED Indcator
Yes
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP44
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA


MAIN FUNCTIONS AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.
