Hydraulic Road Blocker
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |

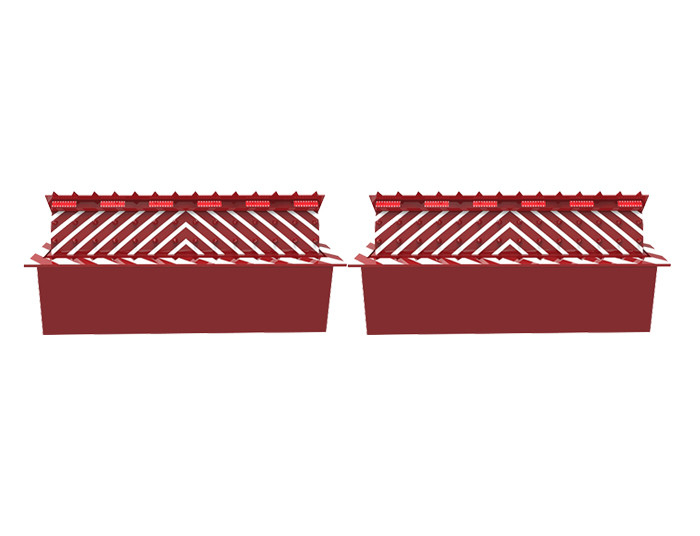

50 To 100 Meter Remote Control Equipment Anti-Terrorism Road Safety Hydraulic Road Blocker
General description
Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy and
standard type, both based on the hydraulic lift.
The purpose of it is mainly to prevent non-permitted vehicles forcibly entered, with high availability, reliability,
security, according to the site and customer needs with a variety of configurations to choose from and can be
customized to meet the functional requirements of various customers.
It also equipped with an emergency release system in case of power outages and other emergency situations,so
that vehicles could pass normally when power off.
Technical Parameter
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.7KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V,(control voltage 24V) |
| Oil container: | 60liter |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -45 ° C ~75 ° C(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm,20 mm,25 mm (Optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
Feature of the Hydraulic Road Blocker Barrier
1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up & down
2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4. Advanced mature Hydraulic pressure technologies
5. Remote control system realize wireless control up & down within 50 to 100 meters range
6. Customized for different users requests
7. Controller display : LCD and LED
8. Swiping card system: support card reader to control bollards up&down
9. Connected with Computer Management OR Charging Systems
10. Can be manually raised and fall down if power cut.
11. Gang-control interface
12. Reliable structure, heavy duty load, smooth action, low noise.
13. In rising and falling, reversible operation is available .
14. Hydraulic drive comes with hydraulic lock
15. PLC programming command control system
16. LCD display ,Both Chinese and English menu.
17. PLC built-in encryption system
Standard Road blocker size:(mm)
L2000*W1000*H760, Rising height: 500 (Customized)
L2500*W1000*H760, Rising height: 500 (Customized)
L3000*W1000*H760, Rising height: 500 (Customized)
L3500*W1000*H760, Rising height: 500 (Customized)
L4000*W1000*H760, Rising height: 500 (Customized)
L4500*W1000*H760, Rising height: 500 (Customized)
L5000*W1000*H760, Rising height: 500 (Customized)
L5500*W1000*H760, Rising height: 500 (Customized)
L6000*W1000*H760, Rising height: 500 (Customized)
Product Application
The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports,
government agencies,embassies, military bases, customs, banks, industrial and mining enterprises,
ports, warehouses, parking lots, and all places where vehicle traffic is restricted.
