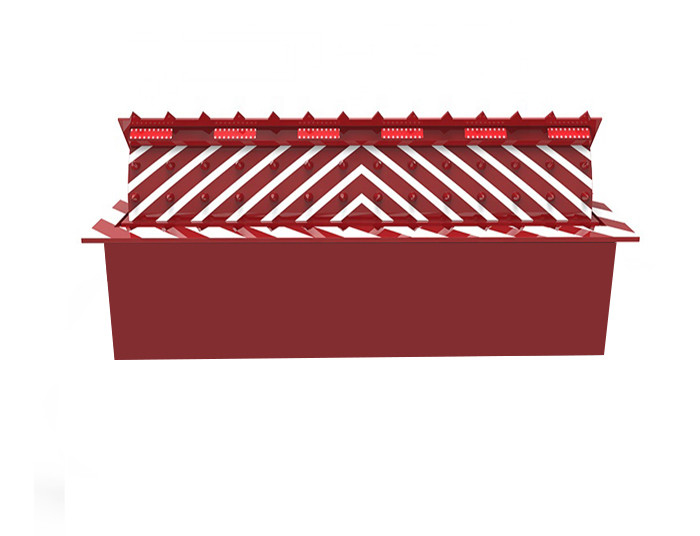

Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW
  • Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW
  • Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW
  • Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW

Light Warning LED Hydraulic Road Blocker Vehicle Control 3.7KW

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Control Voltage:
24V
Passing Pressure:
≤120 Tons Container Trucks
Protection Level:
IP68
Top Plate Thickness:
At Least 16mm
Remote Control Distance:
Approx 50~100m
Driving Unit:
Hydrauli Station
High Light:

Light Warning Hydraulic Road Blocker

,

LED Hydraulic Road Blocker

,

3.7KW Vehicle Control Blocker

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
100pcs per month
Product Description

Vehicle Traffic Control High Security Red And Green Light Warning LED Hydraulic Road Blocker





General description



Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy and

standard type, both based on the hydraulic lift.



The purpose of it is mainly to prevent non-permitted vehicles forcibly entered, with high availability, reliability,

security, according to the site and customer needs with a variety of configurations to choose from and can be

customized to meet the functional requirements of various customers.



It also equipped with an emergency release system in case of power outages and other emergency situations,so

that vehicles could pass normally when power off.



Standard Road blocker size:(mm)



L2000*W1000*H760, Rising height: 500 (Customized)



L2500*W1000*H760, Rising height: 500 (Customized)



L3000*W1000*H760, Rising height: 500 (Customized)



L3500*W1000*H760, Rising height: 500 (Customized)



L4000*W1000*H760, Rising height: 500 (Customized)



L4500*W1000*H760, Rising height: 500 (Customized)



L5000*W1000*H760, Rising height: 500 (Customized)



L5500*W1000*H760, Rising height: 500 (Customized)



L6000*W1000*H760, Rising height: 500 (Customized)





Feature of the Hydraulic Road Blocker Barrier


1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up & down


2. Micro control technology makes bollards work stable and reliable,Easy integrate to other systems




3. Compatible with road barrier,Turnstiles and other access system control to achieve automatic control


4. Advanced mature Hydraulic pressure technologies


5. Remote control system realize wireless control up & down within 50 to 100 meters range


6. Customized for different users requests


7. Controller display : LCD and LED


8. Swiping card system: support card reader to control bollards up&down

9. Connected with Computer Management OR Charging Systems



Product specification



Overall material A3 steel
Material thickness 16mm at least
Surface treatment spray
Protection grade IP 68
Color yellow-black; red-black; green-black
Control system
Hydraulic-electricity
Power supply voltage 380V (control voltage 24V)
System Power 3.7KW
Pressure capacity Min.80 tons of container trucks
Anti-collision equal to K4, K8, K12
Protection level IP68 (dustproof, waterproof)
Open time 1~3S (adjustable)
Closing time 2~3S (adjustable)
Communication RS485 ≤ 1200M
Degree of elevation 450mm-800mm ()
Working temperature -45 ° C ~75 ° C





Product Application



The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports,

government agencies,embassies, military bases, customs, banks, industrial and mining enterprises,

ports, warehouses, parking lots, and all places where vehicle traffic is restricted.



MORE FUNCTIONS FOR OPTIONAL

  • Can be manually raised and fall down if power cut.
  • Gang-control interface
  • Reliable structure, heavy duty load, smooth action, low noise.
  • In rising and falling, reversible operation is available .
  • Hydraulic drive comes with hydraulic lock
  • PLC programming command control system
  • LCD display ,Both Chinese and English menu.
  • PLC built-in encryption system
  • Double dynamic double oil pump 2.3ML/time
  • Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
