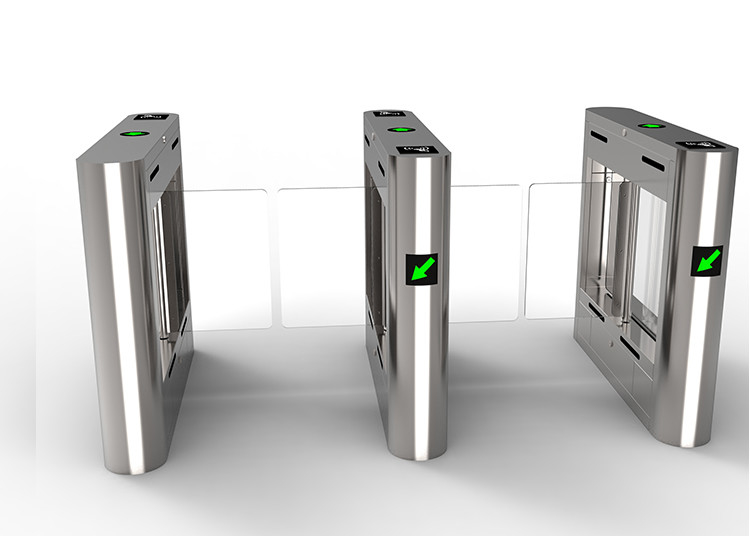

New Design Security Channel Control Swing Turnstile Barrier Gate For Public Entrance
PRODUCT DESCRIPTION
Swing gate is the barrier gate blocking and releasing by swinging of the arm barrier. The material of the barrier
is usually stainless steel and acrylic. It is mainly used for the management of entries and exits.
The usual application places only allow people to pass, or for people who tow luggage, and disabled people.
Swing gate is an intelligent channel administration device that has been carefully developed, developed and
produced over the years. It is a high-tech product primarily for intelligent administration of personnel channels.
The gadget combines mechanical, digital, microprocessor control and numerous identification applied sciences,
and is equipped with quite a lot of identification system devices and reliable efficiency safety units, alarms, direction
indicators, and extended friendliness. The LED counting display interface coordinates the clever control and
management of the channel.
Swing gate has standard enter and output interfaces, and is the best choice for system integrators. It may be simply
compatible with IC card, ID card, barcode card, fingerprint and other card reader identification units, offering civilized
and orderly access for entry and exit personnel. Methods to successfully handle personnel out and in.
PRODUCT SPECS
| Item | Technicial Parameters |
| Product Name | Swing barrier,Glass Gates |
| Model | SN-SB05 |
| Brand | SINOMATIC |
| Design Size | 1200*220*1000 mm |
| Chassis Material | 304 # stainless steel |
| Relative humidity | -20 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Standard channel width | 600mm |
| Temperature | -20ºC-60ºC |
| Travel speed | 30 persons/min |
| Working environment | indoor and outdoor |
| Input interface |
Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Lane width | ≤1200mm |
| Barrier Opening/Closing Time | 0.1s |
| Automatic reset time after failure | 10 seconds |
| Swing arm transmission angle | 180 degrees |
| Thickness | 1.5mm SS304 |
| Driving Motor | 24V |
| The time required to enter the common state after power on | 3 seconds |
| Supplu Voltage | AC100V to 260V |
| Gate components | chassis, movement, control board and power supply |
| Service life | continuous opening and closing more than 3 million times |
| Structure | Frame structure / Stainless steel housing |
| Working environment | Indoor and outdoor (shed) |
| Turning of the gate | one-way / two-way |
| Drive Motor | DC brushless Motor |
