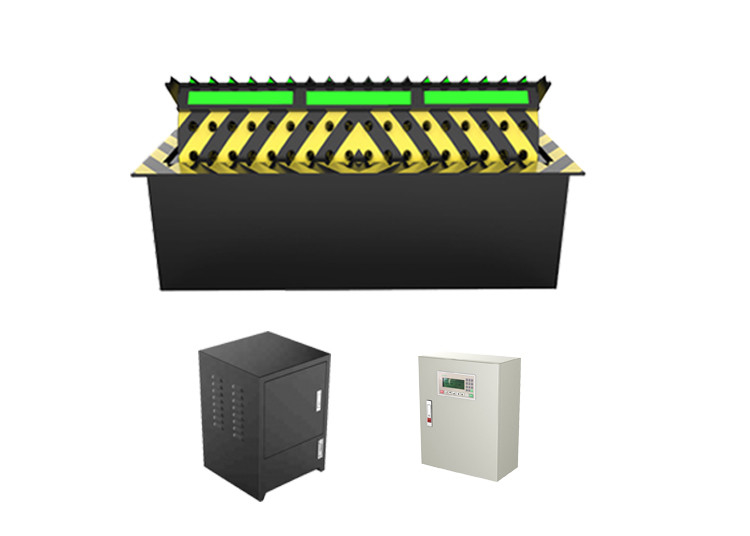

RS485 A3 Steel Automatic Road Blocker Remote Control IP68

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB02
Product Details
Control Voltage:
24V
Power Supply:
3 Phase 380V
Protection Level:
IP68
Top Plate Thickness:
At Least 16mm
Material:
A3 Steel
Driving Unit:
Hydrauli Station
High Light:

RS485 Automatic Road Blocker

,

A3 Steel Automatic Road Blocker

,

IP68 Hydraulic Road Barriers

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
100pcs per month
Product Description

High Security Barrier Customized Color Remote Control Passed Test Hydraulic Automatic Road Blocker





Product specification



Overall material A3 steel
Material thickness 16mm at least
Surface treatment spray
Protection grade IP 68
Color yellow-black; red-black; green-black
Control system
Hydraulic-electricity
Power supply voltage 380V (control voltage 24V)
System Power 3.7KW
Pressure capacity Min.80 tons of container trucks
Anti-collision equal to K4, K8, K12
Protection level IP68 (dustproof, waterproof)
Open time 1~3S (adjustable)
Closing time 2~3S (adjustable)
Communication RS485 ≤ 1200M
Degree of elevation 450mm-800mm ()
Working temperature -45 ° C ~75 ° C



Hyarulic road blocker introduction



Hydraulic road blocker (also known as anti-terrorism wall or road blockers). It is divided into heavy and

standard type, both based on the hydraulic lift.



The purpose of it is mainly to prevent non-permitted vehicles forcibly entered, with high availability, reliability,

security, according to the site and customer needs with a variety of configurations to choose from and can be

customized to meet the functional requirements of various customers.



It also equipped with an emergency release system in case of power outages and other emergency situations,so

that vehicles could pass normally when power off.



RS485 A3 Steel Automatic Road Blocker Remote Control IP68 0



Standard Road blocker size: (mm)



L3000*W1000*H760,Rising height:500(Customized)



L3500*W1000*H760,Rising height:500(Customized)



L4000*W1000*H760,Rising height:500(Customized)



L4500*W1000*H760,Rising height:500(Customized)



L5000*W1000*H760,Rising height:500(Customized)



L5500*W1000*H760,Rising height:500(Customized)



L6000*W1000*H760,Rising height:500(Customized)



MAIN FEATURES



1, control system: hydraulic (liquid crystal display,english,russian,turkish,spanish,different language menu,

the language is customized).


2, power supply voltage: 380V (control voltage 24V).


3. System Power: 3.7KW



4, pressure capacity: Max. 120 tons of container trucks.


5, Anti-collision: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)


6,protection level: IP68 (dustproof, waterproof)


7,open time: 3~6S (adjustable).


8, closing time: 3~6S (adjustable).


9,communication: RS485 ≤ 1200M.


10,the degree of elevation: 450mm-800mm.


11,working temperature: -45 ° C --- 75 ° C.


12, Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof.



13, Weight:2200kg-5500kg approx



Product Application



The Hydraulic Road Blocker are widely used in highway toll stations, checkpoints, prisons, airports, government

agencies,embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses,

parking lots, and all places where vehicle traffic is restricted.



MORE FUNCTIONS

  • Can be manually raised and fall down if power cut.
  • Gang-control interface
  • Reliable structure, heavy duty load, smooth action, low noise.
  • In rising and falling, reversible operation is available .
  • Hydraulic drive comes with hydraulic lock
  • PLC programming command control system
  • LCD display ,Both Chinese and English menu.
  • PLC built-in encryption system
  • Double dynamic double oil pump 2.3ML/time
  • Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
