| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-TK01 |

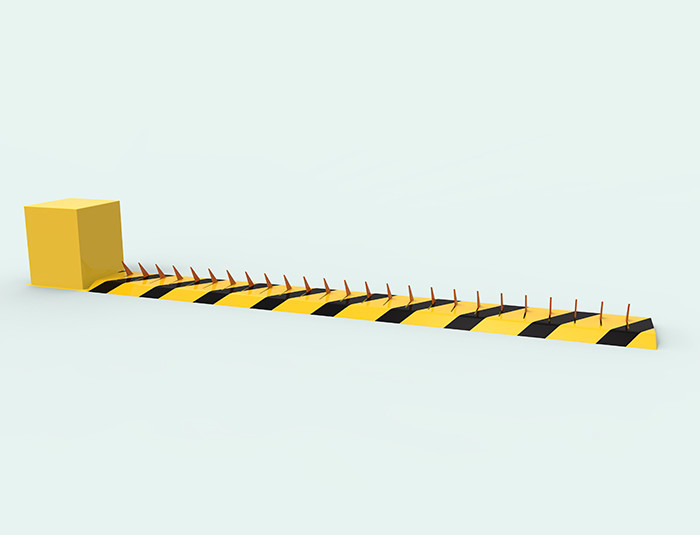

A3 Stainless Steel Full Automatic Tyre Killer Security Black And Yellow Color Traffic Spikes Barrier
About automatic tyre killer
The tyre Killer are specially designed for use at sites requiring high levels of security and dealing with high
traffic pressure.
The tyre-killer is made of A3 steel and steel blade(Shape looks like speed bump). It adopts the mechanical and
electrical integration remote control device,easily operated,safe and reliable.It is advanced equipment to intercept
forbidden vehicles and terrorist vehicles.
Our advantages
SINOMATIC electromechanical tyre killers are controlled by a PLC. Open/close function can be achieved by every
kind of card readers, biometric readers like fingerprint etc, radio control on/off switch or key switch etc. Besides,
safety accessories like loop detectors, photocells, flashing lights or red/green light can be integrated to the control
electronics very easily. Time delay arming of the tire killer can be adjusted between 0-60 seconds.
Product specifications
| Material | Q235 steel/A3 steel |
| Surface treatment | Paint with reflective stripe |
| IP | IP68 |
|
Standard color
|
Black and yellow |
| Length | 3000mm (standard) |
| Width | 580mm (standard) |
| Height from ground | 70~110mm |
| Min weight capacity | 80T |
| Blade height | 150mm |
| Blade thickness | 10mm |
| Operation mode | Electromechanical |
| Working environment | -40℃~+70℃ |
| Up/Down speed | 2s |
| Voltage |
220V
|
PRODUCT MAIN FEATURES
1. Quite and fast
2. Solid and endurable structure, the largest traffic capacity is up to 60t
3. The system is safe, reliable and stable
4. Perform exactly and operate steadily, making the barrier low noise
5. The working environment is -40° C to +70° C
6. Low trouble rate, high reliability, long life cycle,
7. Easy maintenance, and the rate is low
8. Can combine with other control equipment making the barrier auto control
9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal
position, making the cars pass smooth
Our advantage
High security and safety modes.
Spike sectors can move independently.
Manual operation in case of power failure.
High-torque DC motor for greater reliability.
External limit switches provide a failsafe operation.
Emergency lowering or up possible in case of treat or fire.
Indirect drive models can operate independently or traffic barrier unit.
Standard size: (mm), can be customized.
L3000*W540*H72, Rising Length:150
L3500*W540*H72, Rising Length:150
L4000*W540*H72, Rising Length:150
L4500*W540*H72, Rising Length:150
L5000*W540*H72, Rising Length:150
L5500*W540*H72, Rising Length:150
L6000*W540*H72, Rising Length:150
Product application
The tyre killer are widely used in highway toll stations, checkpoints, prisons, airports, government agencies,
embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots,
and all places where vehicle traffic is restricted.
