Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable
  • Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable
  • Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable
  • Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable

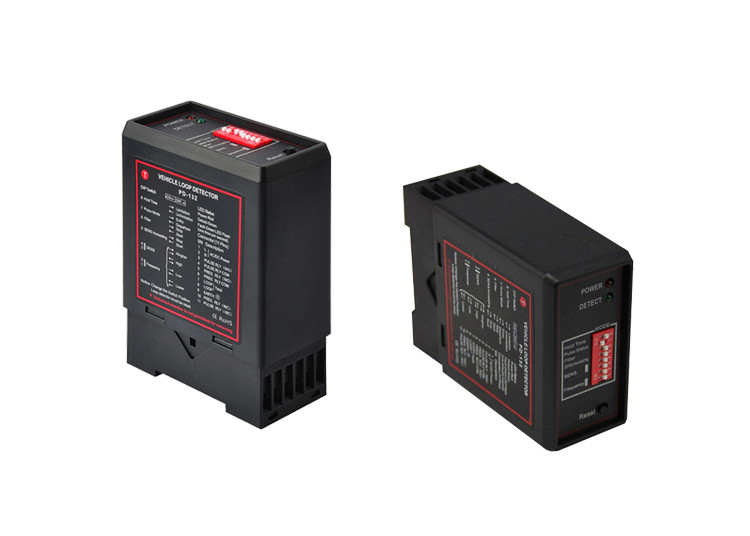

Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number PD-132
Product Details
Output Relays:
240V/5A
Frequency Range:
20kHz To 170 KHz
Dimension:
78*40*108mm
Voltage Available:
220V, 110V, 24V, 12V
Loop Connection Wiring:
Maximum Length 200 Meters Twisted At Least 20 Times Per Meter
Communication:
Relay
High Light:

Car Parking Inductive Loop Vehicle Detector

,

230VAC Inductive Loop Vehicle Detector

,

Adjustable Inductive Loop Traffic Detector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
2-5 working days after payment received
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
3,0000pcs per month
Product Description

Professional Factory Car Parking Management System Vehicle Inductive Loop Presence Detector



Product description



This product is an inductive coil type vehicle detector, which is mainly used to detect the presence and passage

of vehicles. Existence mode, filter, automatic sensitivity enhancement, sensitivity level and frequency selection

can be set, with reset function.



Application scope



♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system



Installation

The detector must be installed in a convenient weatherproof location as close to the loop as possible. Installation

location must choose to stay away from the heat source, it around other devices must maintain a distance of at

least 10mm (mustn’t fix cling to the cabinet).



A correct loop configuration and detector installation will ensure a successful inductive loop detection system.

Loop of several important parameters include: loop figure, size, and turns, install methods.

(details refers to “Loop installation guide”).



Technicial paramters



No
Item
Data
1
Name
Single/Double way vehicle loop detector
2
Supply voltage
230VAC , 115V AC, 24V DC/AC, 12V DC/AC
3
Voltage tolerance
+10% / -15%
4
Power Consumption
4.5VA
5
Output relays
240V/5A
6
Operating temperature
-20°C to +65°C
7
Storage temperature
40°C to +85°C
8
Frequency range
20 kHz to 170 kHz
9
Reaction time
10ms
10
Signal holding time
Unlimited / limited when loop is permanently covered 10 minutes
11
Sensitivity
Adjustable in 4 increments
12
Loop inductance
Total loop plus connection wiring:50μH to 1000μH.
Ideal is 100μH to 300μH
13
Loop connection wiring
Maximum length 20 meters, twisted at least 20 times per meter
14
Size of Housing
78x40x108 mm (L x W x H)



Workshop



Car Parking 230VAC Inductive Loop Vehicle Detector Adjustable 0



Main Features:



♦ Industrial engineering design concept
♦ Standard industrial guide installation
♦ Strong anti-jamming ability and stability
♦ Variety of output interface adapted to different scene
♦ Variety of shape choice meet differentiation demand
♦ High temperature stability
♦ Environment drift automatic compensation function
♦ Coil automatic fault detection function

♦ When the DIP switch is on position or changing the presence output time, Self-detection would be done

♦ ABS align to the pillar which can combine with each other compactly
♦ Presence output time can be adjustable
♦ Work mode can be set by the DIP switch
♦ Pulse output or permanent output can be adjustable



Work Indicator



Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power,

this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED

will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.



DIP SWITCH and Wire Jumper



DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse

output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to

the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the

NC of relay 1.



Work Frequency



User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment

frequency. It offers two styles frequency, set by DIP6



Sensitivity Adjustable



The DIP1,DIP2 on the front panel can adjust the sensitivity. If the vehicle has not any response when test it,

the sensitivity should be improved.



Packaging & Shipping



Packaging:Standard Exported Carton/Wooden Package,customized packing is available too,as your wish!

Shipping:Usually 48 Hours After Payment.
