Automatic Barrier Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-AG01 |

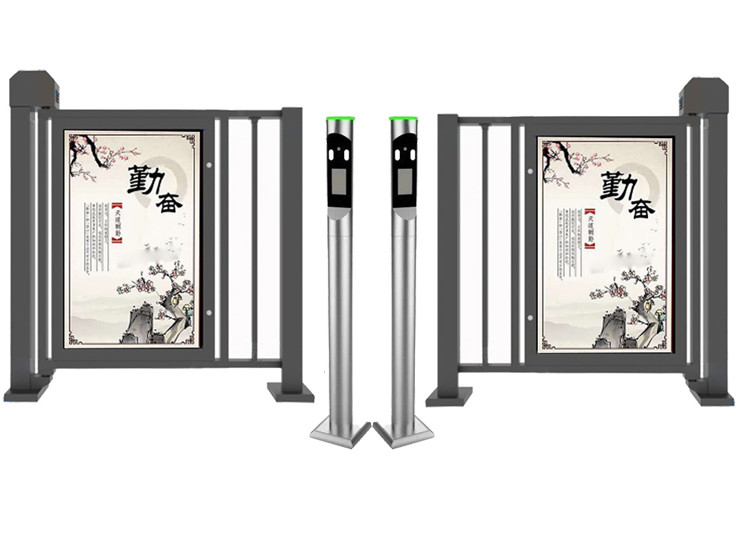

Highlight Imported LED Light Advertising Supported 2.0mm Thickness Steel Plate Auto Barrier Gate
Product Description
The whole product is made of metal materials, which is easy to transport and install, and durable.
It can be used in outdoor environment. The appearance is beautiful and generous, and large advertising pictures
can be installed on both sides of the gate. The picture is easy to install and disassemble, and the operation is simple.
The interior of the advertising screen is equipped with LED light band, support turning off the light in the daytime
and turning on the light at night, with adjustable time control, saving energy and electricity. Set photoelectric,
mechanical control in one, flexible operation, convenient, safe and reliable use.
The advantage of advetising door
The traditional access door uses the door closers and ordinary materials which is very inconvenient for business
or double hands to pass. By contrast, intelligent advertising door adopts light box design that looks high-end atmosphere.
It not only enhances the property image, but also provides convenience for the owners' travel at night.
The technical configuration includes automatic door opener and 1 meter induction or mobile door-opening access
which realize automatic identification, automatic opening and automatic closing. It is safe and convenient.
Our product advantages
Highlight imported LED, No shadow in the screen, Long lifespan;
Waterproof rating IP44 for both indoor and outdoor;
High-power DC motor, Open/Close without effect from wind resistance;
1.5mm to 2.0mm steel plate, Laser cutting molding, Strong and Durable;
Concentric design, Stable and reliable working;
Electrostatic spray, anti-fade, exquisite craft.
General specifications
| ITEM | VALUE |
|
Place of Origin
|
Shenzhen China
|
|
Brand Name
|
SINOMATIC |
|
Model Number
|
SN-AG01 |
|
Product name
|
Advertising Barrier Gate
|
|
Material
|
Metal
|
|
Type
|
Barrier
|
|
Color
|
Customized Color
|
|
Feature
|
Security,Accurately,Intelligent,Automatic
|
|
Application
|
Security Access Control Management
|
|
Working environment
|
Indoor & Outdoor
|
Technicial specifications
| ITEM | SPECIFICATIONS |
| Overall dimension | Height 1642mm, width 1222mm |
| Advertising panel dimension | 680mm*1078mm |
| Gate opening angel | plus or minus 90 degrees, and the precise angle can be selected within 180 degrees, which completely solves the left and right direction problem. |
| Power supply | DC24V-10A |
| Motor power | DC24V-25w |
| Opening and closing speed | step-less debugging, the fastest 2 seconds, the slowest 25 seconds |
| Soft start and stop | support Soft start and stop, angle adjustable |
| Resistance rebound | resistance resilience adjustable |
| The electromagnetic lock | yes |
| Remote controller | optional |
| Main board automatic repair | Main board adopts intelligent memory, intelligent repair function, When the gate encounters external force and destroys the running program, the main board can automatically repair the running program |
| Operating temperature | -30 ℃ to 60 ℃ |
| Operating humidity | 10% to 95% |
| LED spotlight | DC12V / 20W (Main board with light sensing control function) |
| Voice | optional (can customize and update broadcast content) |
| Traffic light | optional |
Product Functions
Automatic Identification, Automatic Opening, Automatic Closing;
Intelligent security control system to ensure pedestrian Safety;
Automatic Voice Prompts when the door is running;
Automatic detecting when door closes, automatic voice prompt when door doesn't close;
Automatic LED lighting control;
Automatically detect and prompt when use exception;
Can adjust the open/close speed.
