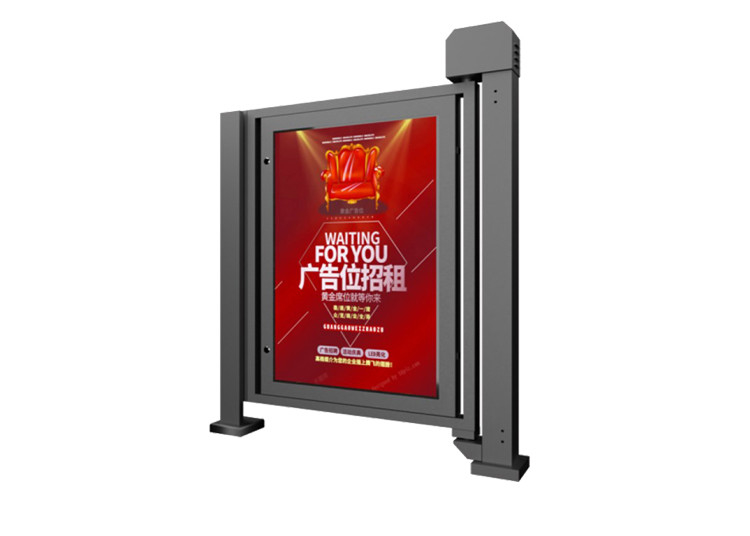

180 Degree Opening Pedestrian Barrier Gate Crowd Control DC24V
  • 180 Degree Opening Pedestrian Barrier Gate Crowd Control DC24V
  • 180 Degree Opening Pedestrian Barrier Gate Crowd Control DC24V

180 Degree Opening Pedestrian Barrier Gate Crowd Control DC24V

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-AG01
Product Details
Overall Size:
Height 1642mm, Width 1222mm
Advertising Panel:
680mm*1078mm
Gate Opening Angel:
180 Degrees
Power Supply:
DC24V
Motor Type:
Brushless DC Motor
Motor Power:
25w
High Light:

Crowd Control Pedestrian Barrier Gate

,

180 Degree Opening Pedestrian Barrier Gate

,

DC24V Pedestrian Barrier Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
3,000pcs per month
Product Description

Multi-Application Crowd Control 180 Degree Opening Angel Pedestrian Automatic Advertising Gate



Product Description



The exquisitely crafted wrought iron door is integrated with the unique advertising light box, which perfectly

combines the pedestrian access door of the community with the advertising communication.



The unique lighting effect at night not only enhances the advertising effect, but also enhances the overall image

of the entrance and exit of the community.



The whole product is made of metal materials, which is easy to transport and install, and durable.

It can be used in outdoor environment. The appearance is beautiful and generous, and large advertising pictures

can be installed on both sides of the gate. The picture is easy to install and disassemble, and the operation is simple.

The interior of the advertising screen is equipped with LED light band, support turning off the light in the daytime and

turning on the light at night, with adjustable time control, saving energy and electricity. Set photoelectric,

mechanical control in one, flexible operation, convenient, safe and reliable use.







Highlight advantages



Standardized design

Mature supporting production line, efficient production process



Exquisite process

Complex mechanical structure, high quality materials, a variety of processing procedures



Rigorous performance testing

Create greater value products through a variety of violence, heavy load, durability testing



Beautiful and practical industrial design

On the premise of practicality, it also gives consideration to beauty, which is in line with the popular aesthetic



Technicial specifications

Overall parameters Height 1642mm, width 1222mm
Advertising panel parameters 680mm*1078mm
Gate opening angel plus or minus 90 degrees, and the precise angle can be selected within 180 degrees, which completely solves the left and right direction problem.
Power supply DC24V-10A
Motor power DC24V-25w
Opening and closing speed step-less debugging, the fastest 2 seconds, the slowest 25 seconds
Soft start and stop support Soft start and stop, angle adjustable
Resistance rebound resistance resilience adjustable
The electromagnetic lock yes
Remote controller optional
Main board automatic repair Main board adopts intelligent memory, intelligent repair function, When the gate encounters external force and destroys the running program, the main board can automatically repair the running program
Operating temperature -30 ℃ to 60 ℃
Operating humidity 10% to 95%
LED spotlight DC12V / 20W (Main board with light sensing control function)
Voice optional (can customize and update broadcast content)
Traffic light optional
